Designing for foam thermoforming involves carefully selecting the right foam material based on its properties like heat stability and elasticity, and following specific engineering guidelines for part geometry, feature integration, and tolerance expectations to ensure successful and efficient production.


Getting the design right from the start is key. It saves time and money later. Let's look closer at what goes into making a great design for this process.

Understanding the Foam Thermoforming Process: Basics and Variations Exist

Are you confused about how foam thermoforming actually works? You might wonder what happens to the foam sheet. It seems like magic how it changes shape.

Foam thermoforming heats a flat sheet of foam until it is pliable, then uses vacuum or pressure to pull or push it into a mold cavity¹, forming the desired three-dimensional shape as it cools and hardens.


The process starts with a flat sheet. I remember seeing it for the first time years ago. It looked simple, but there's more to it.

How Does Basic Thermoforming Work?

Basic thermoforming is straightforward. You heat the foam sheet. It gets soft. Then you put it over a mold. Vacuum pulls the sheet down onto the mold shape. Air pressure can also push it. The foam cools against the mold. It holds the new shape. This is the core idea.

What are the Variations?

There are variations on the basic process.

• Vacuum Forming: This is the most common. Vacuum pulls the heated sheet against the mold. It works well for simple shapes.
• Pressure Forming: This uses air pressure above the sheet. It pushes the sheet into the mold. Pressure forming can create sharper details. It can also handle thicker materials better.
• Twin-Sheet Forming²: Two sheets are heated at once. They are formed and joined together in the mold. This makes hollow parts.

Each variation has its uses. The right process depends on the part design. It also depends on the foam type. Knowing these basics helps you design better parts. You can think about how the foam will stretch and form.

Why Choose Thermoforming for Foam Components? Advantages and Limitations Matter?

You might ask why thermoforming is a good choice for foam parts. What makes it stand out from other methods? Are there downsides?

Thermoforming is often chosen for foam components because it is cost-effective for medium to large production runs, allows for large part sizes, and offers relatively fast cycle times compared to other molding processes, though it has limitations in achieving tight tolerances and complex geometries.


I have seen many projects where thermoforming was the best fit. It really shines in specific situations. But it is not perfect for everything.

What are the Advantages?

Thermoforming offers several advantages for foam parts.

• Cost-Effective Tooling³: Molds are often less expensive than injection molds. This makes it good for lower to medium volumes.
• Large Part Capability: You can make very large parts. This is useful for things like protective packaging or large pads.
• Faster Prototyping: Tooling is quicker to make. You can test designs faster.
• Material Efficiency: It uses sheets or rolls. There is less material waste compared to some other methods.
• Good for Thin Walls: It can form relatively thin foam walls.

I remember a project for a large protective case insert. Thermoforming let us make the large, complex shape needed quickly and affordably.

What are the Limitations?

Thermoforming also has limitations.

• Tolerance Control⁴: Achieving very tight tolerances can be hard. The foam shrinks as it cools. Controlling this is tricky.
• Complex Shapes: Parts with deep draws, sharp corners, or undercuts are difficult. The foam stretches and thins in deep areas.
• Wall Thickness Variation: The wall thickness is not uniform. It is thinner in stretched areas.
• Material Choice: Not all foams are suitable. They need to be heat-formable.

When I work with clients designing PPE padding, we discuss these points. We need to balance the need for specific shapes with what thermoforming can realistically achieve.

Material Selection and Properties are Crucial for Success?

Choosing the right foam is one of the most important steps. The material dictates how well it will form. What properties should you look for?

Selecting the correct foam material for thermoforming requires considering its heat stability, elasticity, density, thickness, and surface properties, with common choices including EVA, PE, and XLPE foams, each offering different characteristics that affect formability and final part performance.


I spend a lot of time on material selection with my clients. It is a critical decision. The wrong material can ruin a project.

Selecting the Right Foam Material for Thermoforming: Key Candidates

Certain foam types work better for thermoforming than others.

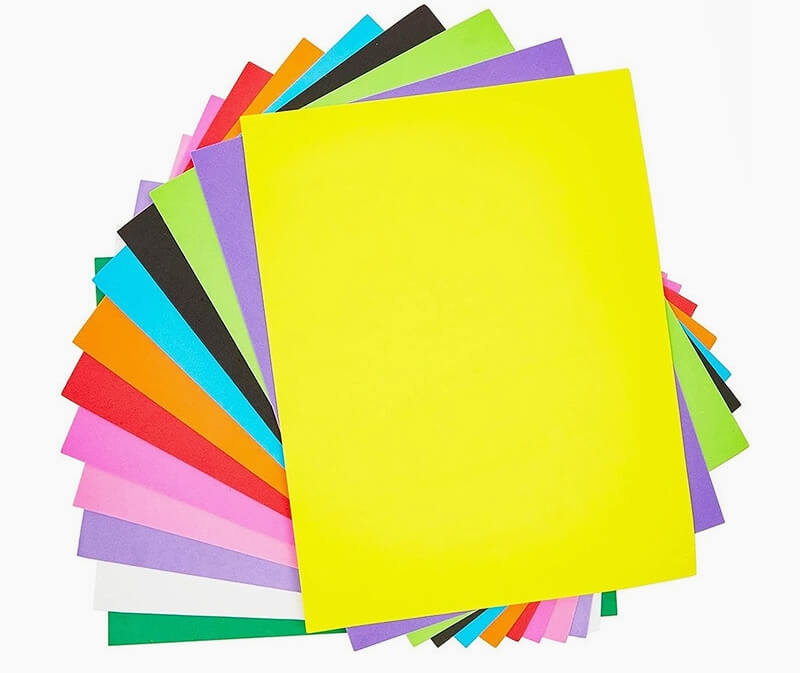

• EVA Foam (Ethylene Vinyl Acetate): This is very common. It is flexible and durable. It forms well. It is good for padding and protective gear.

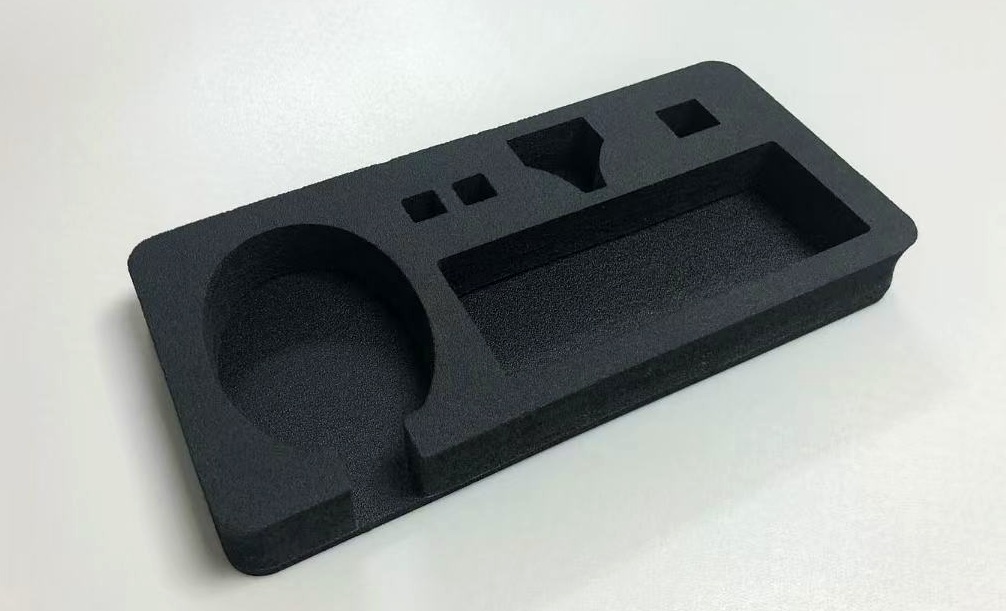

• PE Foam (Polyethylene): PE foam is lightweight. It is also cost-effective. It is used for packaging inserts. It thermoforms well but might be less elastic than EVA.

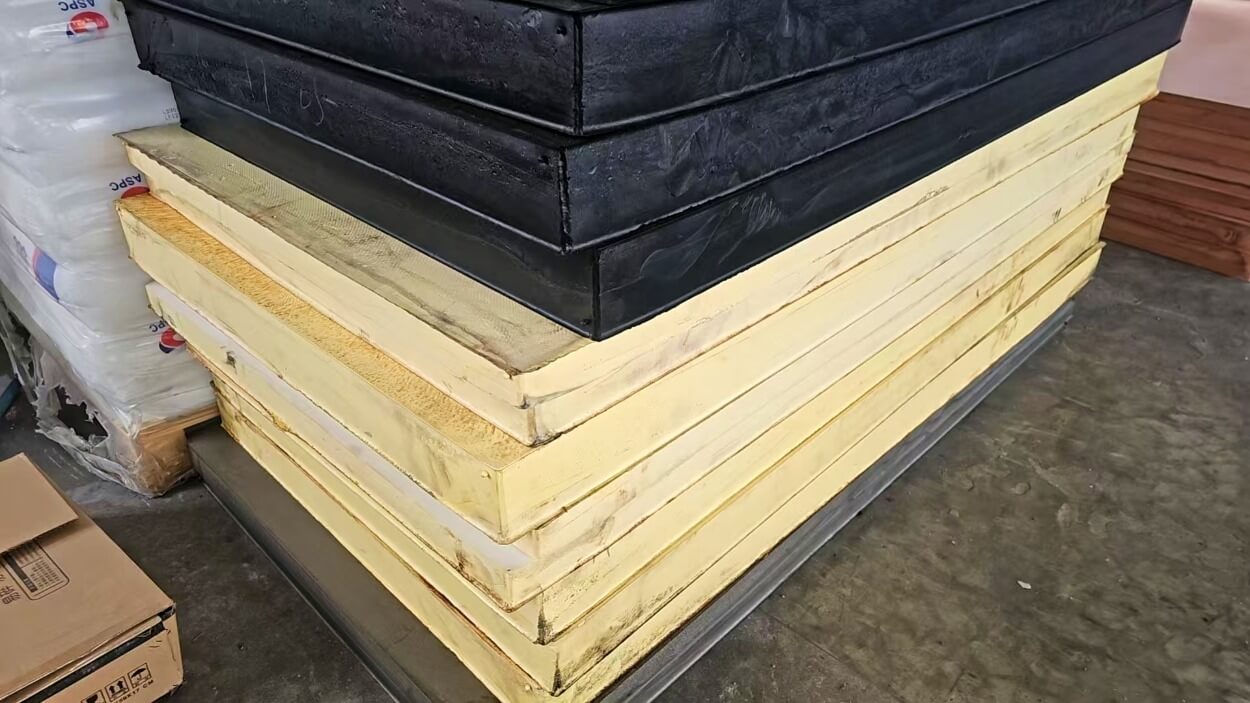

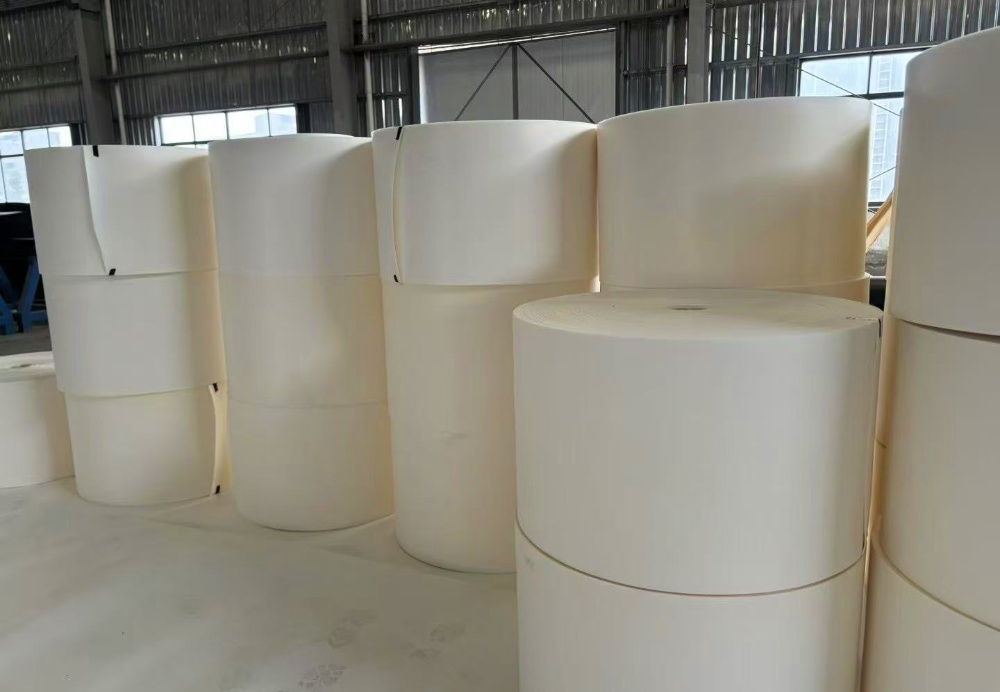

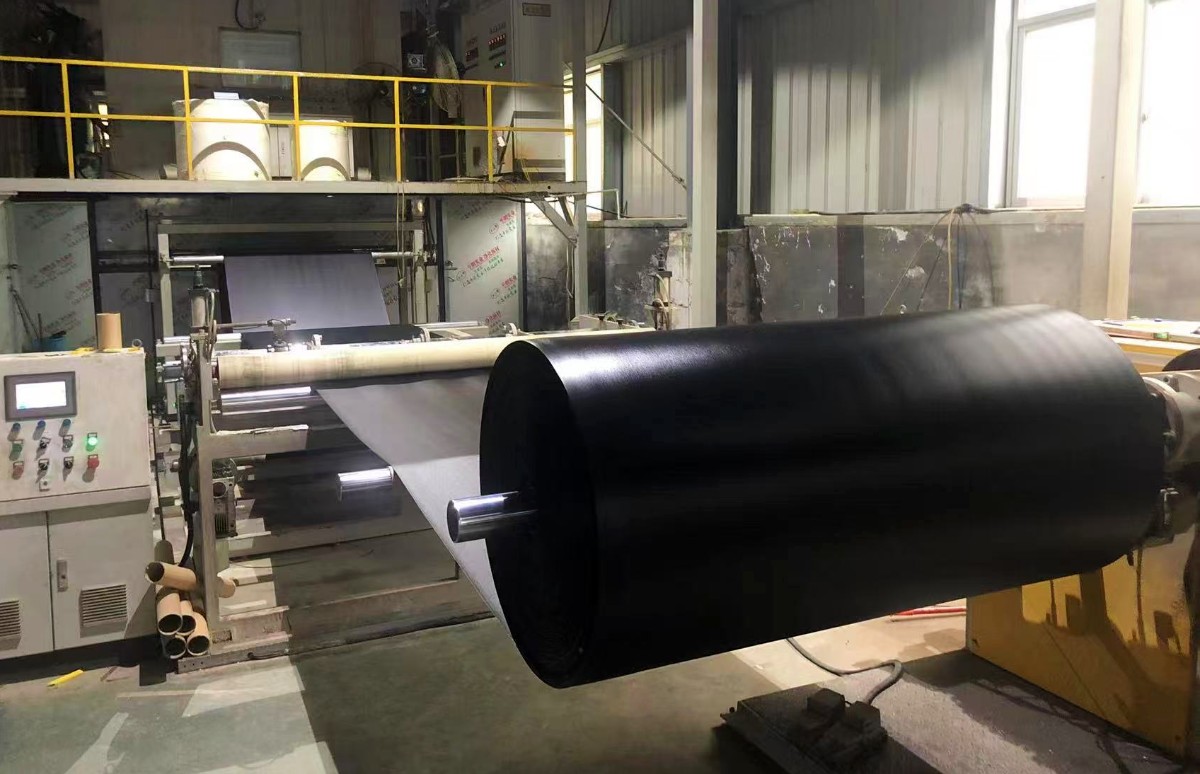

• XLPE Foam (Cross-linked Polyethylene): This is a type of PE foam. It has better strength and durability. It also has good heat stability. It forms very well and holds detail better than standard PE.

Customers who often need durable, cost-effective materials for industrial packaging. PE or XLPE are usually good options for him.

Critical Material Properties Influencing Foam Thermoformability

Several properties matter a lot.

• Heat Stability: The foam must soften when heated but not melt or degrade. It needs a good forming temperature window.
• Elasticity and Elongation⁵: How much the foam can stretch without breaking is key. This affects how well it fills the mold, especially in deep draws.
• Memory: The foam should hold the formed shape after cooling. It should not spring back too much.
• Consistency: The material must be uniform in thickness and density. Inconsistent material forms poorly.

I test material samples often. I check how they behave when heated. This helps predict forming success.

The Role of Foam Density and Thickness in Thermoforming Success

Density and thickness are big factors.

• Density: Higher density foam is usually stiffer. It might need higher temperatures or more pressure to form. Lower density foam is softer. It might tear or collapse if too hot or stretched too much.
• Thickness: Thicker sheets are harder to heat evenly. They also need more force to form. Thinner sheets heat faster. They can be prone to stretching too thin in deep areas.

We work with clients to find the right balance. For a helmet liner, density affects protection and comfort. Thickness affects the fit and how well it forms into the helmet shape.

Surface Finishes and Textures: Material Options and Thermoforming Impact

The surface of the foam matters too.

• Smooth Surfaces: These form cleanly. They show mold details well.

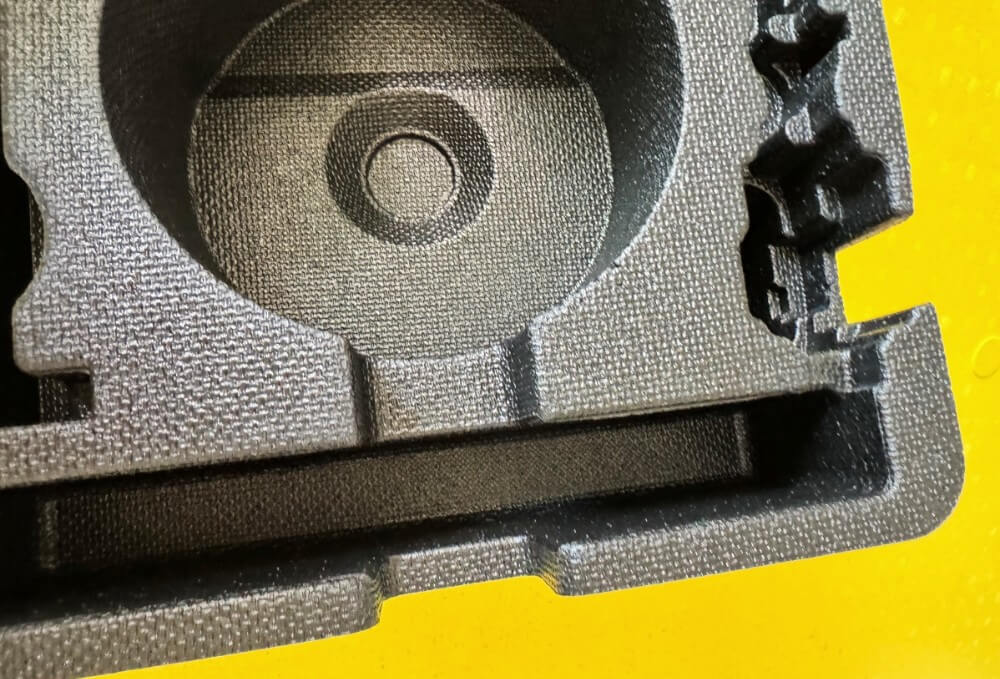

• Textured Surfaces: Some foams have existing textures. These textures can be distorted during forming. The mold can also add texture to a smooth sheet.

Choosing a material with the right base surface is important. You also need to consider if the forming process will change it.

Engineering and Design Guidelines are Necessary for Good Parts?

Once you pick the material, you need to design the part itself. Are there specific rules to follow for thermoformed foam? Yes, definitely.

Following essential engineering and design guidelines for foam thermoforming, such as managing draft angles⁶, corner radii, and incorporating features like ribs or bosses correctly, is critical for successful part ejection, uniform material distribution, and achieving the desired functional performance within expected tolerances.


Good design makes the process easier and the part better. I always review client designs with these points in mind.

Essential Design Guidelines for Thermoformed Foam Parts

Several fundamental rules apply.

• Draft Angles: All vertical walls need a draft angle. This helps the part release from the mold. Foam parts usually need larger draft angles than rigid plastics. I recommend at least 3-5 degrees, sometimes more.
• Corner Radii: Avoid sharp corners. Foam stretches around corners. Sharp corners cause thinning or tearing. Use generous radii, both inside and outside.
• Draw Ratio: This is the depth of the part compared to its width. Deep draws are harder. They cause significant thinning. Try to keep the draw ratio low if possible.
• Uniform Wall Thickness (Goal): While not perfectly achievable, design to minimize wall thickness variation. Avoid features that cause excessive stretching in one area.

When designing protective inserts, I always emphasize radii. A sharp corner in foam can become a weak point.

Incorporating Features: Ribs, Bosses, and Inserts in Thermoformed Foam

Adding features needs careful thought.

• Ribs: Ribs add stiffness. They need draft. They also need radii at the base. Avoid making them too tall or thin.
• Bosses: Bosses are raised areas, often for mounting. They are like small draws. They need draft and radii.
• Inserts: You can sometimes incorporate other materials or inserts. This is usually done after forming. Trying to form around complex inserts is difficult.

I had a project where a client wanted a complex rib pattern. We had to simplify it and add more draft to make it formable in foam.

Tolerancing Thermoformed Foam Parts: What to Expect

Tolerances are looser than for injection molding.

• Shrinkage: Foam shrinks as it cools. The amount varies by material and process.
• Flexibility: Foam parts are flexible. Measuring them accurately can be hard.
• Process Variation: Temperature, pressure, and cycle time variations affect the final size.

I tell clients that thermoformed foam tolerances are typically +/- 1mm or more, depending on size and complexity. Very tight fits are challenging. We focus on functional fit rather than exact dimensions sometimes.

Tooling and Process Interaction Affect Results?

The mold design and how the process runs are linked to the part design. How do they work together?

Tooling design for foam thermoforming must account for material shrinkage⁷, incorporate proper draft and radii based on the part design, and integrate effective heating and cooling strategies to optimize material flow, ensure accurate forming, and achieve consistent part quality.


The mold is where the magic happens. But the process settings are just as important.

Tooling Design Considerations for Optimal Foam Forming Results

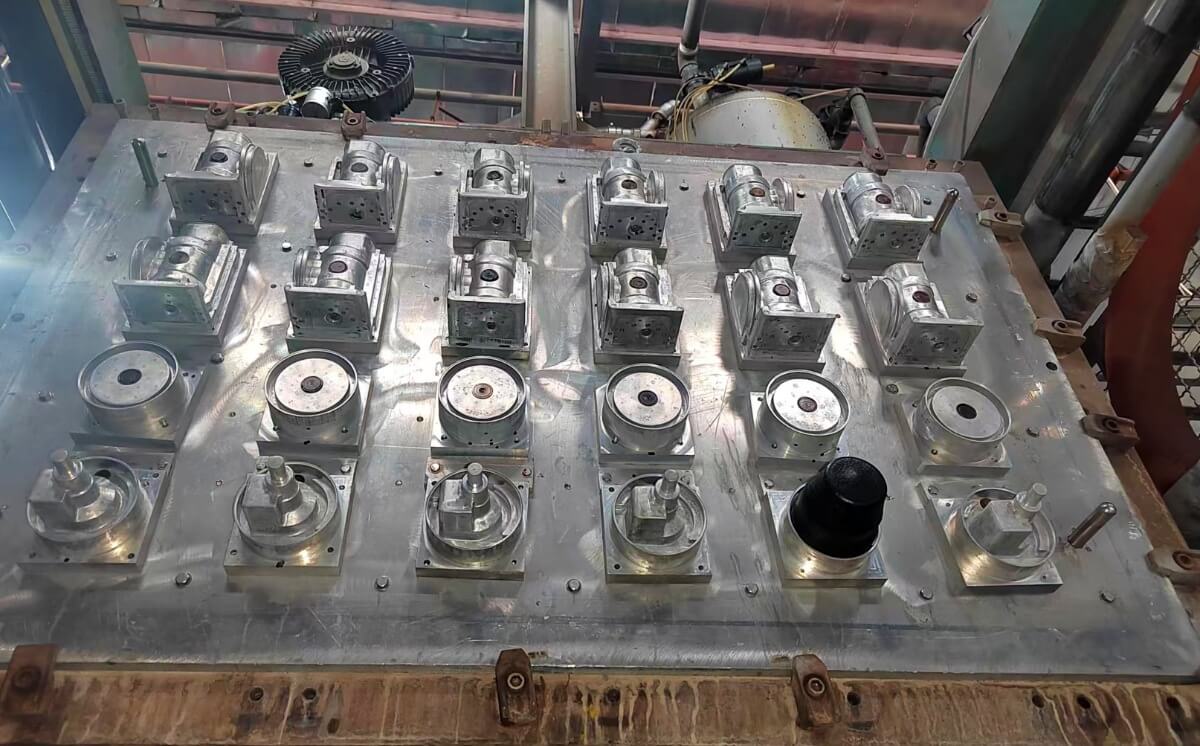

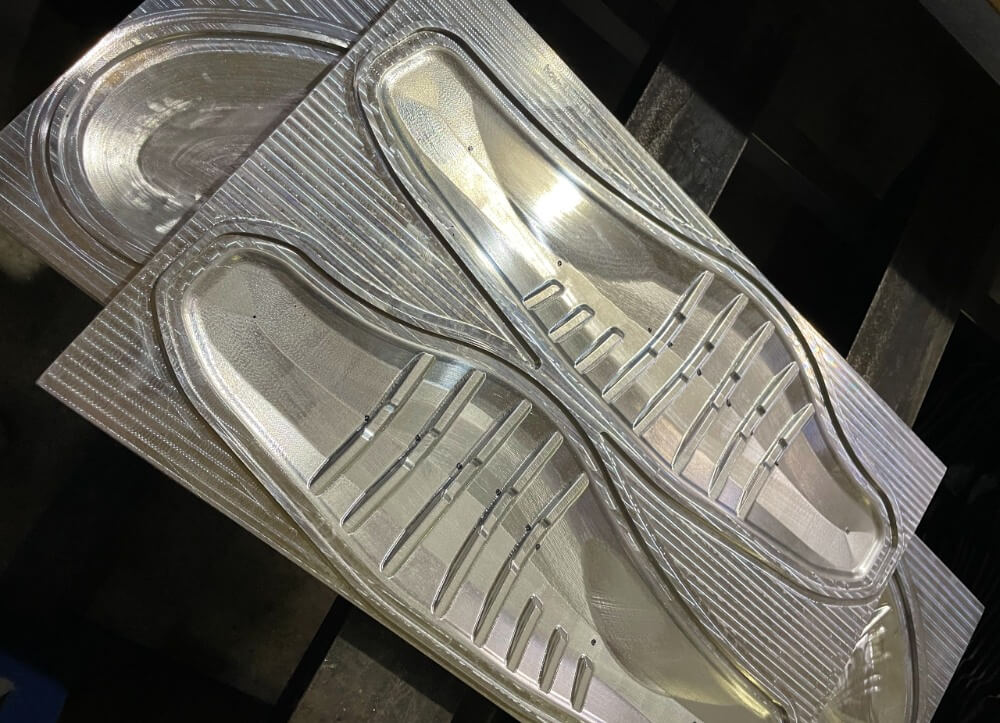

The mold is usually made from aluminum or composite materials.

• Material: Aluminum is common for production. It heats and cools well. Composites are good for prototyping or short runs.
• Draft and Radii: The mold must match the part design's draft and radii requirements. Molds are often slightly oversized to account for shrinkage.
• Venting: Air trapped between the foam and the mold must escape. Proper venting (small holes) is crucial, especially for vacuum forming.
• Temperature Control: Molds can be heated or cooled. This helps control the foam temperature during forming and cooling.

Designing the mold requires understanding how the foam will flow and stretch into it.

Material Shrinkage: How to Account for It in Part and Tool Design

Foam shrinks when it cools.

• Shrinkage Rate: The shrinkage rate depends on the specific foam type, its density, and the process settings. It can be 1-3% or more.
• Accounting for Shrinkage: The mold is made slightly larger than the desired part size. The amount larger is based on the expected shrinkage rate.
• Testing: We often run tests to confirm the actual shrinkage for a specific material and design.

I always build shrinkage into the tool design calculations. It prevents the parts from ending up too small.

Heating and Cooling Strategies: Impact on Material and Part Quality

Controlling temperature is vital.

• Heating: The foam sheet must be heated evenly to the correct temperature. Too hot, it degrades. Too cold, it won't form. Radiant heaters are common.
• Cooling: The foam must cool in the mold to set the shape. Cooling time affects cycle time and shrinkage. Cooling the mold helps speed this up.

Proper temperature control ensures the foam is pliable enough to form without tearing. It also helps the part hold its shape after ejection.

Troubleshooting and Optimization Help Improve Designs?

Even with good design, issues can arise. How do you fix problems and make the process better?

Common foam thermoforming defects like webbing, thinning, or incomplete forming can often be prevented through careful design adjustments, material selection, and process optimization, while prototyping strategies⁸ allow for testing and refining both the design and process before committing to full production tooling.


Troubleshooting is part of the process. We learn from each run. Optimization makes everything more efficient.

Common Foam Thermoforming Defects and How Design Can Prevent Them

Some problems show up often.

• Webbing: This happens when foam folds or wrinkles instead of stretching smoothly, often in corners or tight radii. Design fixes include increasing radii or adding draft.
• Thinning: The foam stretches too much in deep areas. Design fixes include reducing the draw depth or adding material in that area. Sometimes material choice helps.
• Incomplete Forming: The foam does not fully reach all parts of the mold. This can be a heating issue, lack of vacuum/pressure, or a design that is too complex for the material. Design fixes include simplifying geometry or improving draft/radii.
• Poor Detail: Features are not sharp. This can be material density, insufficient pressure, or tooling issues. Design needs to consider if the feature is formable in foam.

I remember a packaging insert that had webbing in the corners. We added larger radii to the design, and the problem went away.

Prototyping Strategies for Thermoformed Foam Designs

Prototyping is very helpful.

• Soft Tooling: Use less expensive tooling materials like wood or composite. This lets you test the formability of the design and material quickly.
• Single Cavity Molds: Make a mold for just one part. This is faster and cheaper than a multi-cavity production tool.
• Material Trials: Test different foam types or densities on the prototype tool. See how they form.

Prototyping helps catch design issues early. It is much cheaper to change a prototype tool than a production tool. It gives confidence before investing heavily.

Conclusion

Designing for foam thermoforming needs attention to detail. Material choice and engineering guidelines are key. Getting it right leads to successful, functional parts.

Impact-absorbing foams in PPE work by compressing upon impact, spreading the force over a larger area and time. This reduces the peak force transferred to the wearer, significantly lowering the risk of injury. Materials like EVA, PU, EPP, and PE are commonly used.

Understanding how these specialized foams work is key to appreciating their role in safety gear. The science behind impact absorption allows us to design better, safer products. Now, let's delve into why this capability isn't just a feature, but a fundamental requirement for modern PPE.

Why Is Impact Absorption Non-Negotiable in Modern PPE?

Think safety gear is optional? Accidents happen fast, and inadequate protection leads to serious injuries. Impact absorption isn't a luxury; it's vital for preventing harm in many workplaces and activities.

Impact absorption¹ is non-negotiable because it directly prevents or reduces the severity of injuries from drops, collisions, or falling objects. Effective PPE must manage impact energy to protect users in hazardous environments, meeting safety standards and user expectations for safety.

In my years working with foam fabrication for various industries, especially personal protection², I've seen how critical impact absorption is. It's the difference between a minor incident and a life-altering injury. Modern safety standards must meet, demand effective impact management.

Workers in industrial settings rely on PPE to shield them from daily hazards. Whether it's a construction helmet, sports padding, or military gear, the primary function is often to absorb shock. Failure isn't an option when someone's well-being is on the line. We design foam components knowing they must perform under pressure, dissipating harmful forces away from the body. It's a core responsibility in creating effective safety solutions.

How Do We Measure the Effectiveness of Impact Foams?

Using foam that feels protective isn't enough, right? Relying on guesswork means risking inadequate safety. We need objective ways to measure foam performance to ensure it truly protects against impacts.

Key performance metrics include peak acceleration (lower is better), impact energy absorption (how much energy the foam dissipates), compression set resistance (foam's ability to recover after impact), and durability over repeated impacts. Standardized tests (like ASTM or EN standards) quantify these factors.

Evaluating impact foam isn't just about squeezing it. We rely on specific tests and data to understand how a foam will perform when it matters most. Here are some key metrics we consider:

• Peak Acceleration (G-force)³: This measures the maximum force transmitted through the foam during an impact. Lower G-force readings mean better protection. Standardized drop tests using instrumented headforms or masses are common.

• Impact Energy Absorption: How much of the impact energy does the foam actually absorb, versus just bouncing back? This is often calculated from force-displacement curves during testing. Higher absorption is generally desirable.

• Compression Set Resistance⁴: After being compressed by an impact, how well does the foam return to its original thickness? Good recovery is vital for multi-impact protection. Poor recovery means less protection on subsequent hits.

• Durability: Can the foam withstand multiple impacts without significant degradation in performance? This is crucial for PPE expected to last.

We use standardized testing protocols, often specific to the application (e.g., helmet standards, body armor standards), to compare materials and ensure they meet the required safety levels. For clients, providing this data builds confidence in the material's protective capabilities.

What Are the Leading Impact-Absorbing Foam Materials in PPE?

Confused about which foam material offers the best impact protection? Choosing incorrectly leads to uncomfortable or ineffective gear. Understanding the main options helps select the right material for specific PPE needs.

Leading impact foams include EVA for versatility, PU for comfort and custom tuning, EPP/EPS for lightweight structure and multi-impact resistance (EPP), and PE foam variations offering different densities and cost points. Often, combining materials gives the best results.

Over the years, I've worked extensively with various foams, each having unique strengths for impact absorption in PPE. Here’s a brief overview:

EVA (Ethylene-Vinyl Acetate) Foam⁵

This is a real workhorse. EVA is closed-cell, flexible, tough, and offers good impact absorption. It's easily molded (compression molding is common) and fabricated. We use it widely in knee pads, helmet liners, and general protective padding. Its versatility makes it a go-to for many applications.

PU (Polyurethane) Foam⁶

PU foams, especially flexible molded types or energy-absorbing formulations, are excellent. They can be formulated for specific rebound characteristics and comfort levels. Think soft, conforming padding inside helmets or body armor that still manages impact energy effectively. Some PU foams offer excellent slow-recovery properties, great for dissipating force.

EPP (Expanded Polypropylene) & EPS (Expanded Polystyrene)

These are bead foams often used in helmets. EPS is very lightweight and absorbs impact by crushing permanently. It's typically single-impact. EPP is also lightweight but resilient; it can withstand multiple impacts and return to its shape. EPP is increasingly popular in higher-end helmets and protective components requiring structural integrity and multi-impact performance.

PE (Polyethylene) Foam

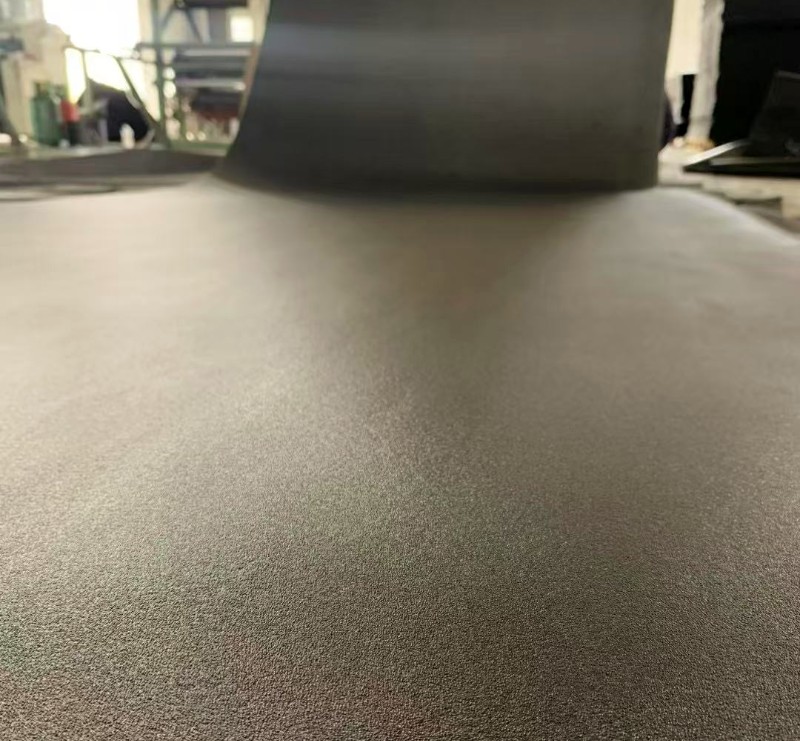

PE foam, especially cross-linked PE (XLPE), offers good impact absorption and durability. It comes in various densities, allowing performance tuning. Higher density PE provides firmer protection, while lower density offers softer cushioning. It's often used in flotation devices, sports padding, and industrial safety gear.

Multi-Density Foam Compositions

Often, the best solution isn't a single foam type. We frequently use foam lamination to combine layers of different foams (e.g., a softer PU foam layer for comfort against the body and a denser EVA or EPP layer for primary impact absorption). This strategic layering optimizes both comfort and protection, addressing needs prioritizes.

How Are These Protective Foams Manufactured and Fabricated for PPE?

Wondering how raw foam becomes a finished PPE component? Using the wrong manufacturing method can compromise the foam's structure and protective qualities. Understanding these processes ensures the foam performs as intended.

Common methods include compression molding for dense, shaped parts (EVA, PE), injection molding for complex 3D shapes (PU, some TPE foams), lamination for combining layers, and CNC cutting for precision shapes from sheets or blocks (prototyping, custom fits).

At FoamTech, we utilize several advanced techniques to turn blocks or sheets of foam into precise PPE components:

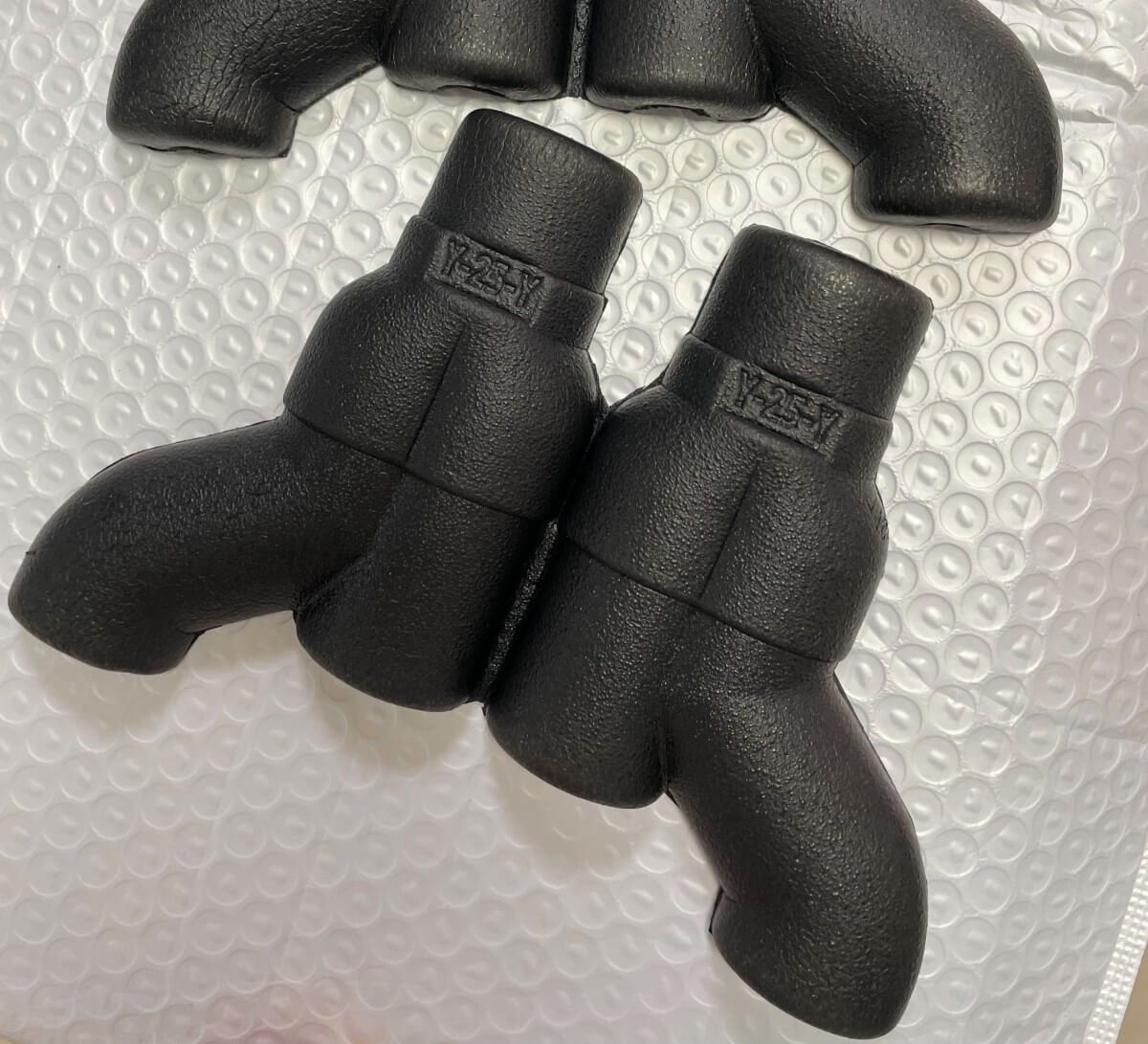

Foam Compression Molding / Thermoforming

We heat a sheet or pre-form of foam (like EVA or PE) and press it into a mold. This creates dimensionally accurate, often dense parts with specific shapes and surface textures. It's great for things like knee pad inserts or molded chest protectors.

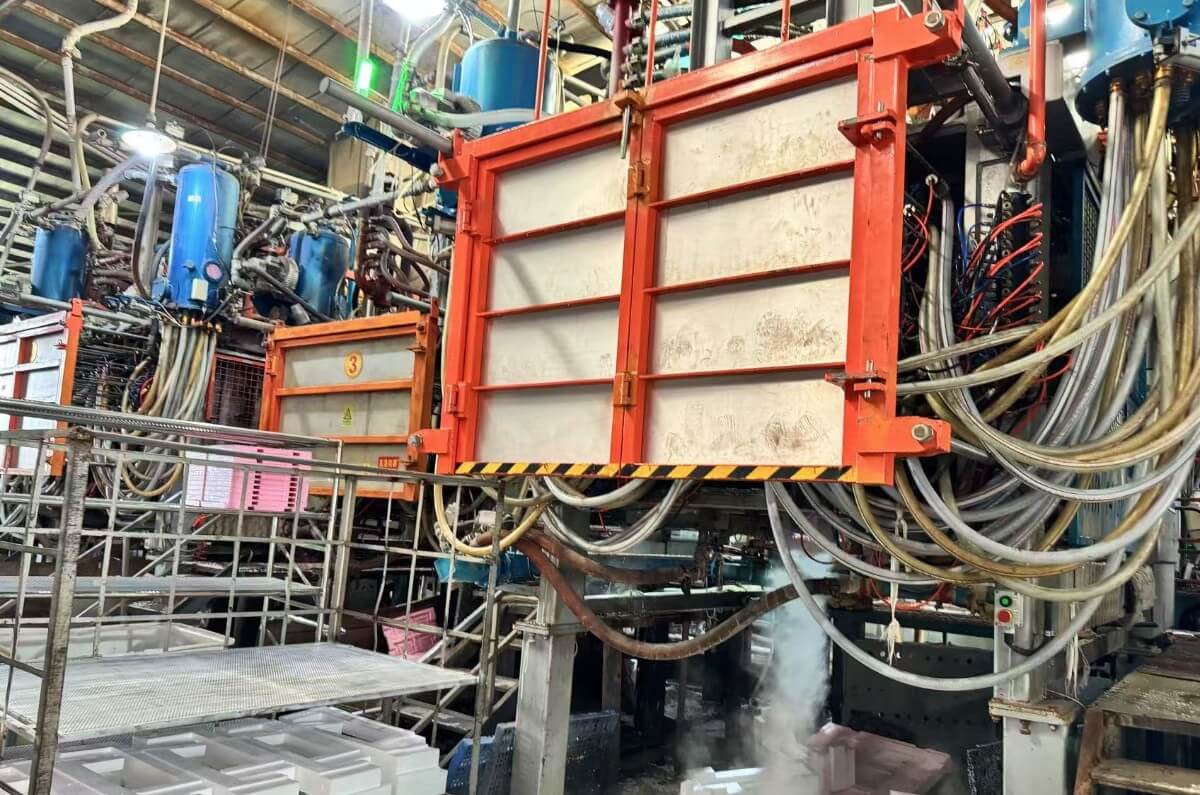

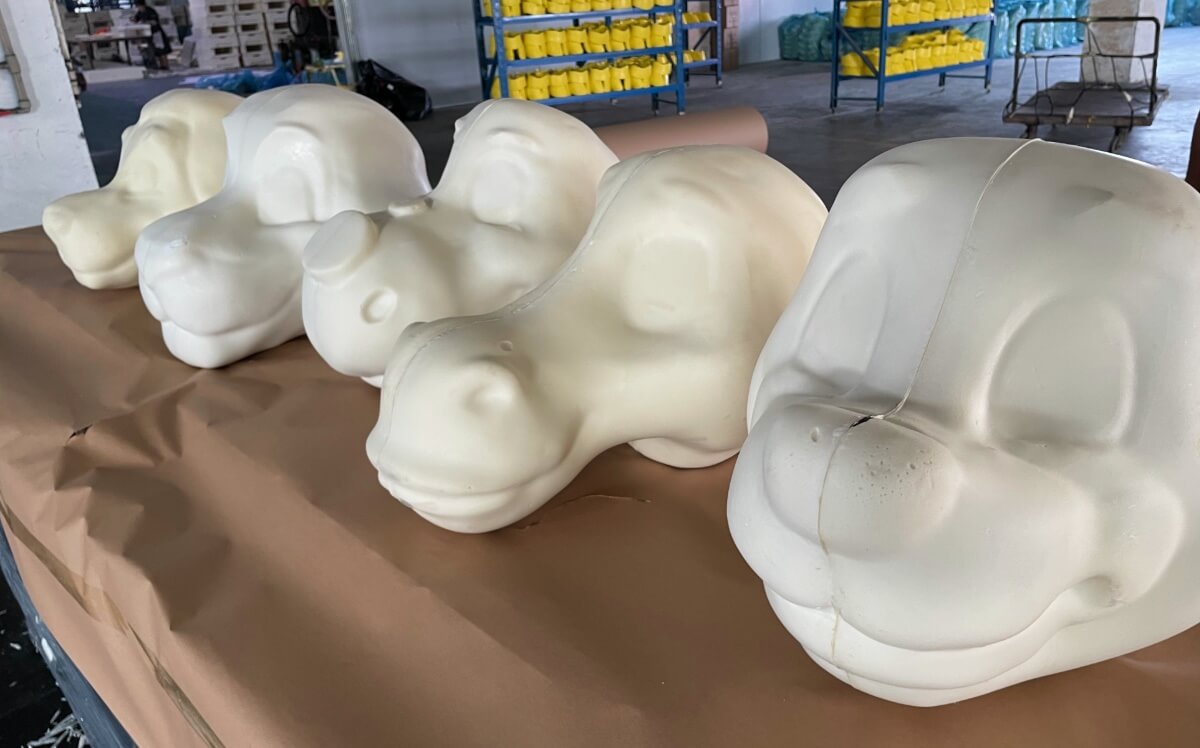

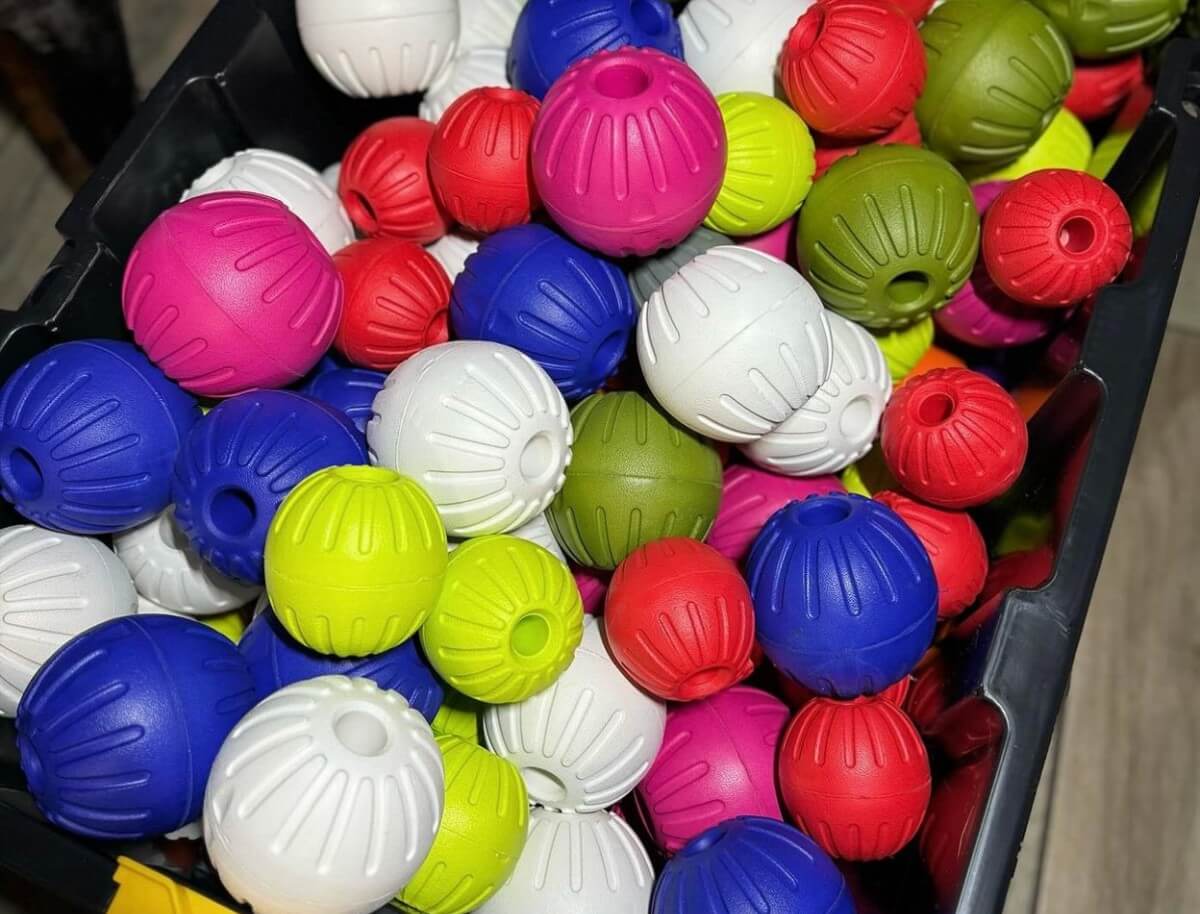

Foam Injection Molding⁷

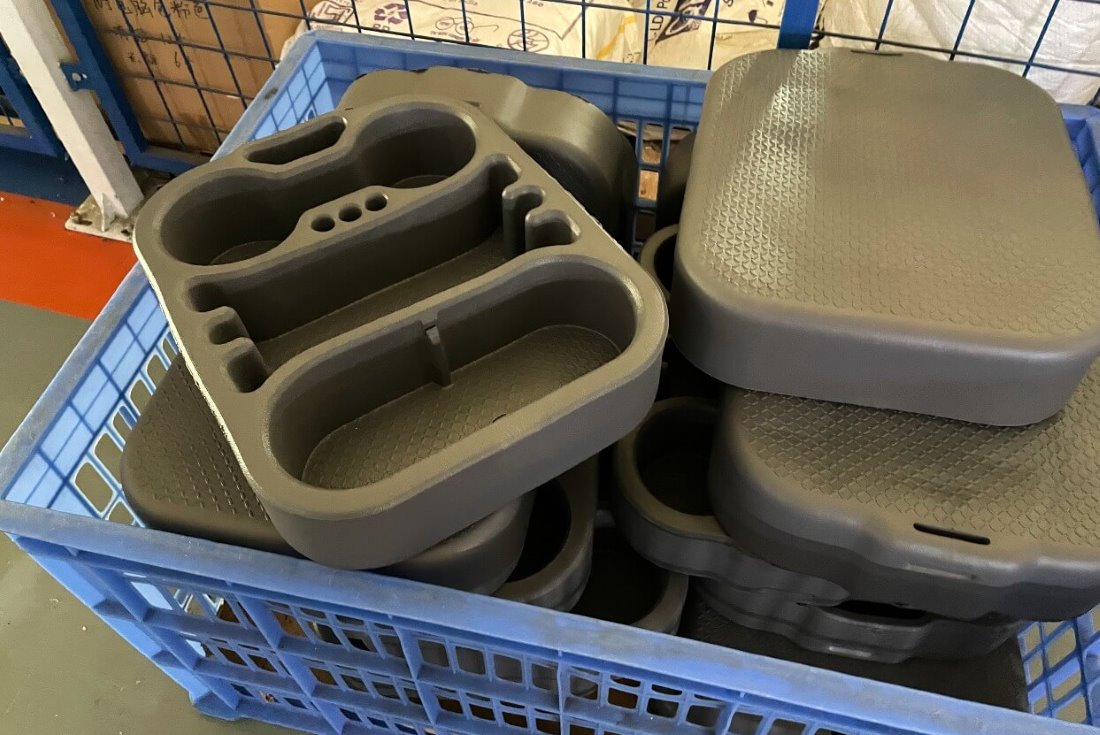

Here, molten foam material (often specialized PU or thermoplastic elastomers - TPEs) is injected into a mold cavity. This allows for highly complex 3D shapes and intricate details, ideal for advanced helmet liners or ergonomic padding components.

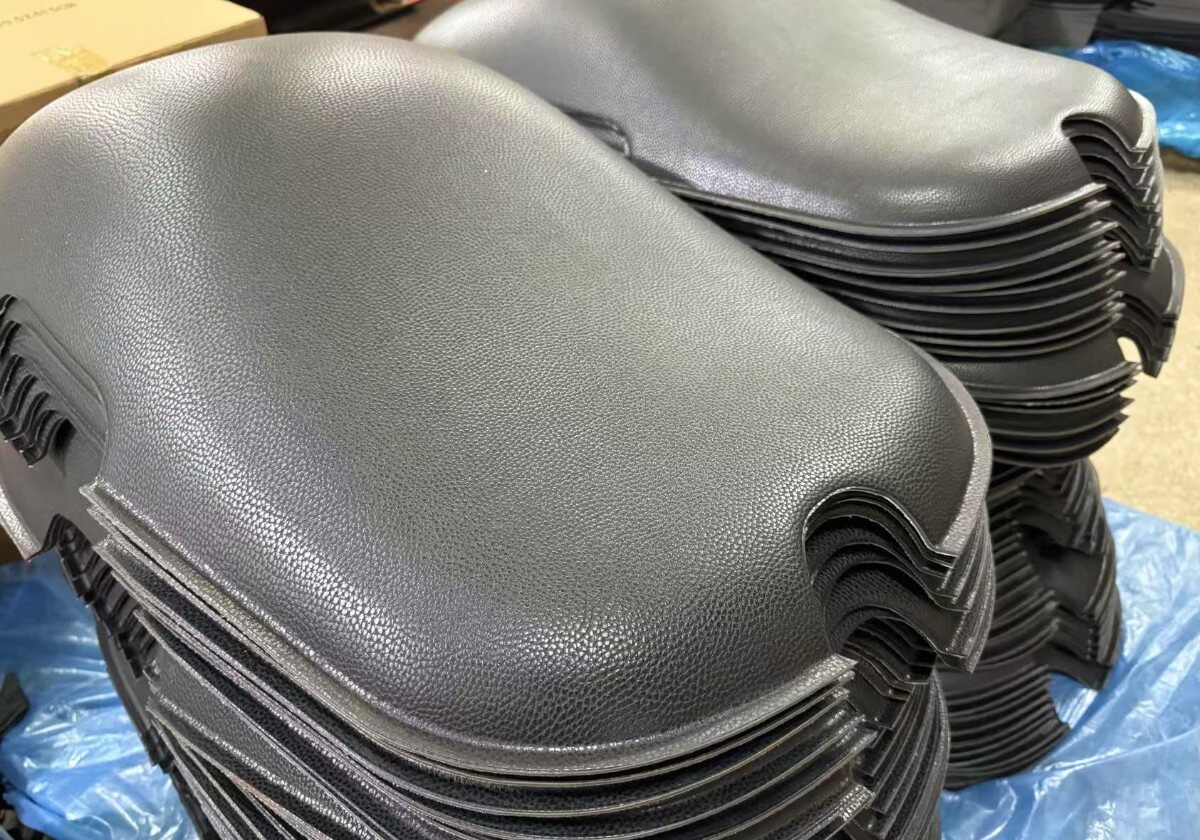

Foam Lamination

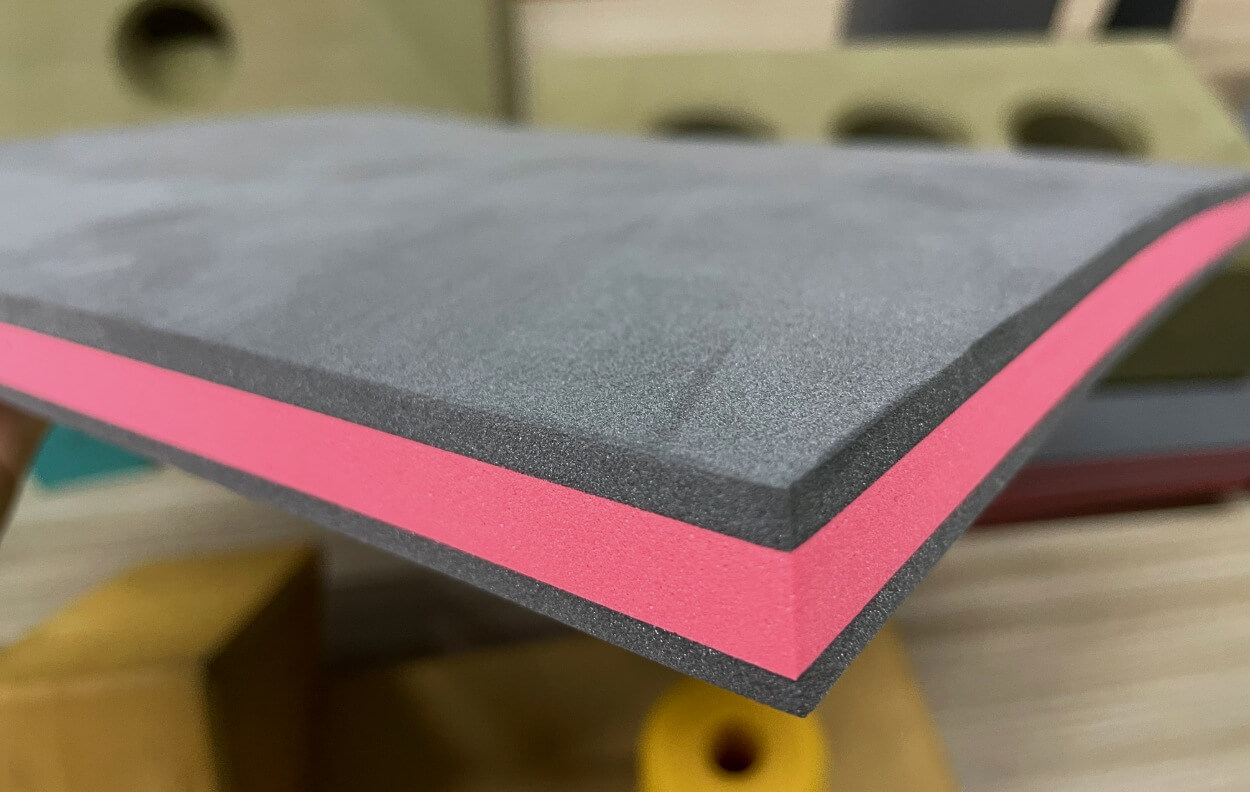

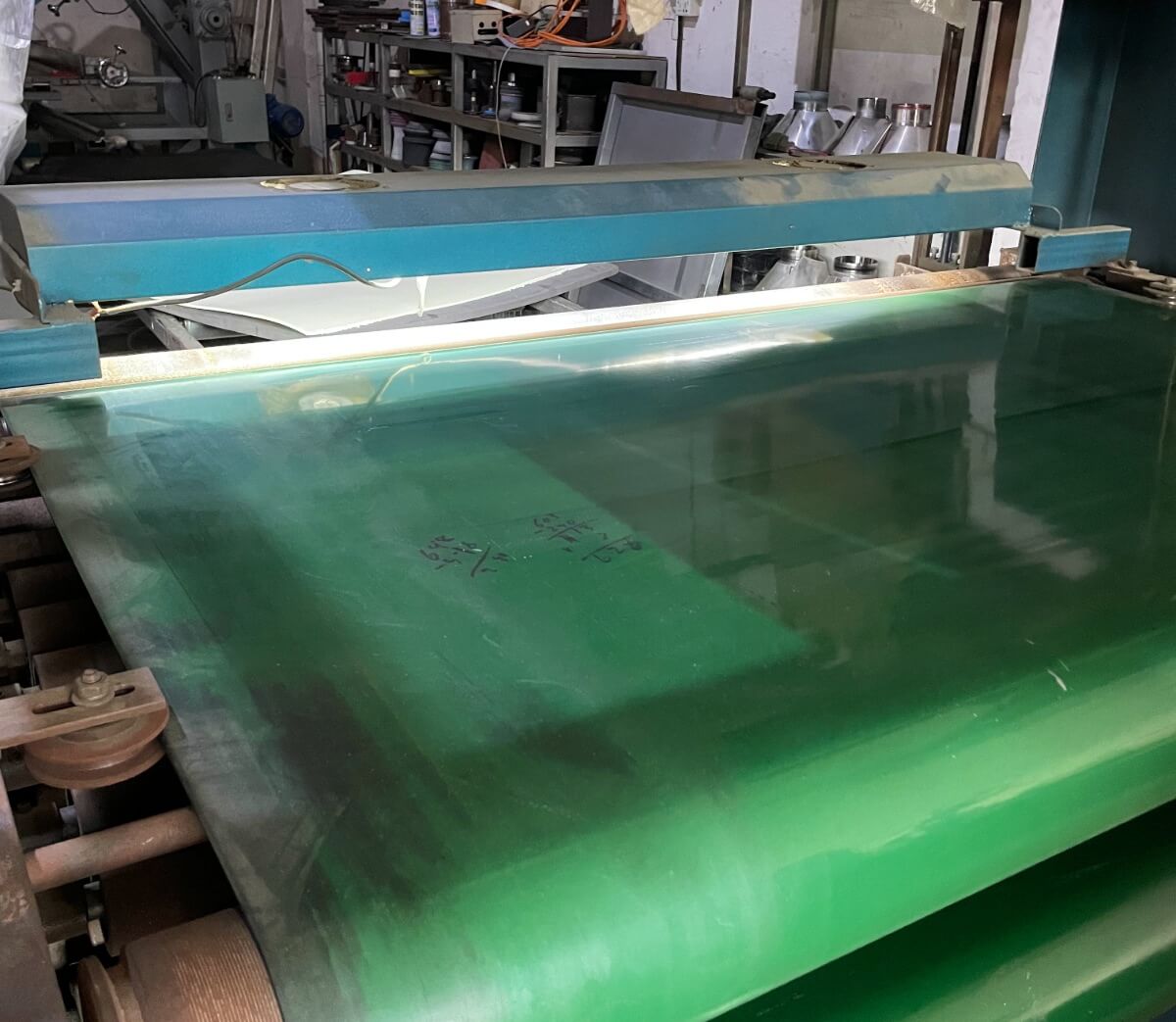

This involves bonding different layers together. We might laminate a durable fabric to an impact foam, or bond foams of different densities using heat or adhesives. This creates multi-functional composites tailored for specific protective needs, common in body armor or layered helmet systems.

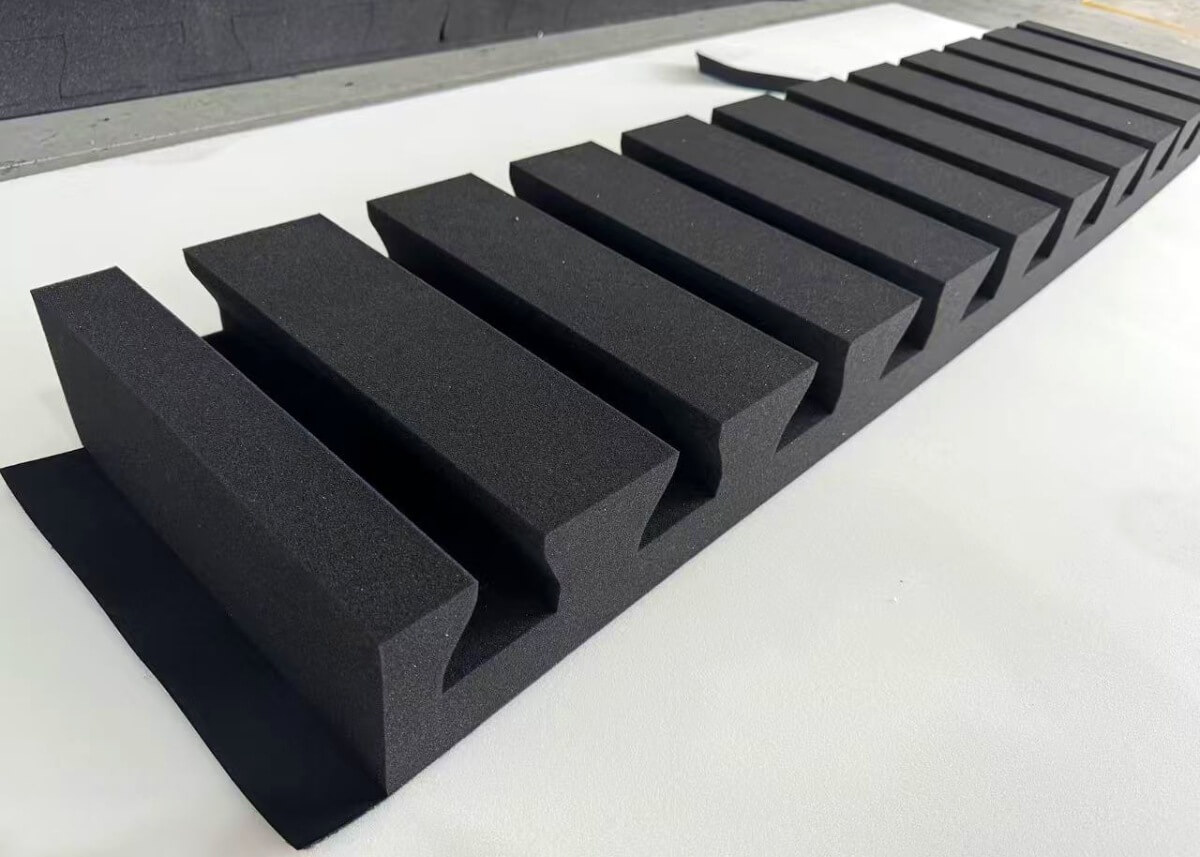

Advanced CNC Fabrication⁸

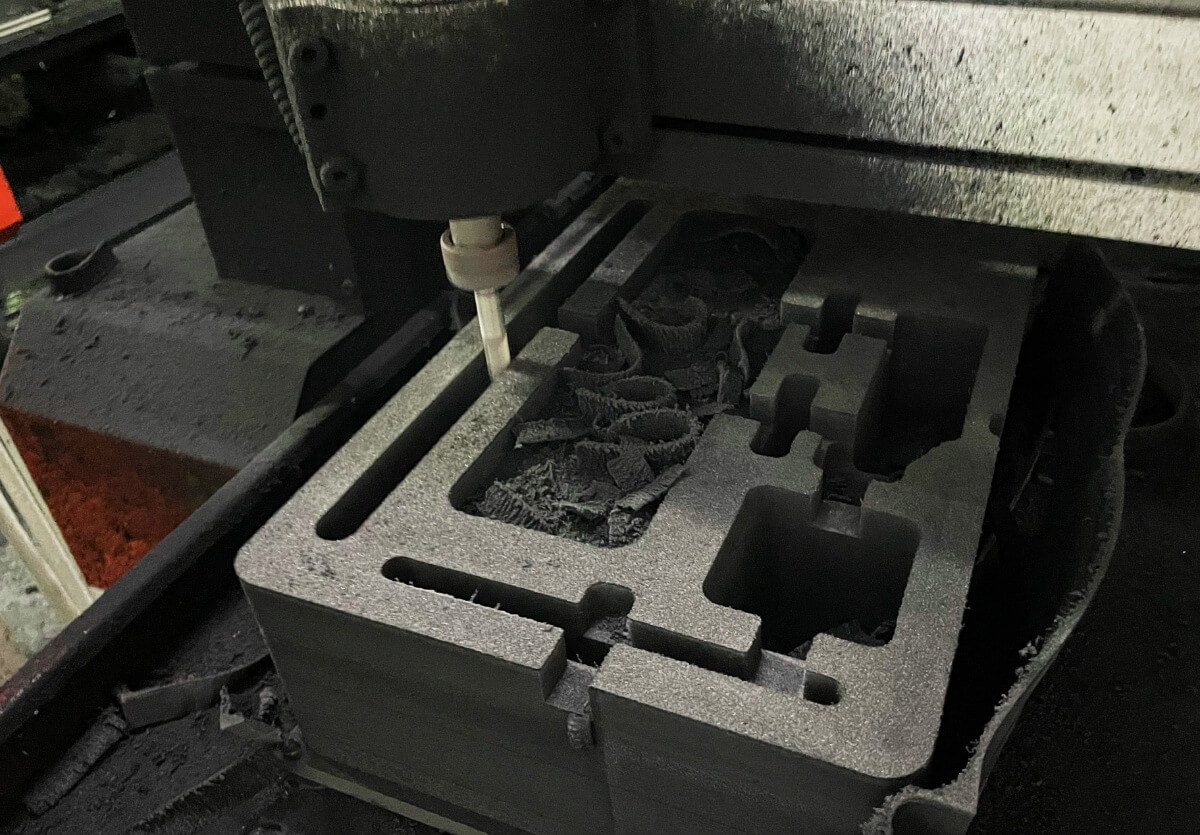

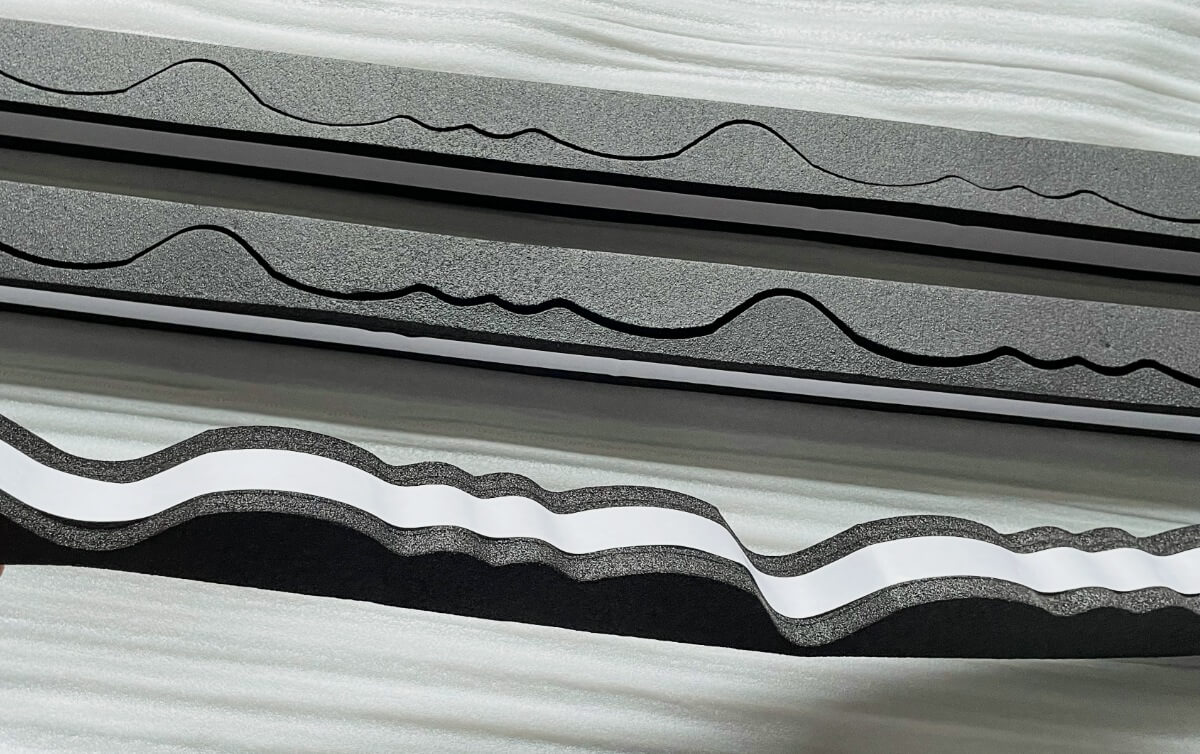

Using computer-controlled machines (like routers, waterjets, or knife cutters), we precisely cut complex shapes from foam sheets or blocks. This is excellent for prototypes, custom-fit padding, or producing intricate designs without the high tooling costs of molding. We use this for EVA, PE, PU, EPP, and more.

Choosing the right method depends on the foam type, part complexity, required density, production volume, and cost targets. Our experience helps guide clients to the most effective process for their specific PPE application.

How Do We Match Foam Properties to Specific PPE Needs?

Is the same foam suitable for a helmet and a knee pad? Assuming one-size-fits-all risks poor performance. Matching foam characteristics to the specific demands of the PPE item is critical for effective protection.

Match foam by considering impact type (sharp vs. blunt), required thickness/coverage, flexibility needs, weight constraints, and multi-impact requirements. Helmets often use EPP/EPS or molded PU; body armor uses laminated foams⁹; knee pads favor durable EVA or PU.

Selecting the right foam involves analyzing the specific protection scenario. Let's look at some examples:

• Helmets: Need to manage high-energy, potentially sharp impacts. Lightweight is crucial. Often use crushable EPS for single, high-impact events or resilient EPP for multi-impact capabilities. Molded PU liners add comfort and secondary impact absorption. The key is meeting specific testing standards (e.g., DOT, ECE, CPSC).

• Body Armor (Soft): Requires flexibility and coverage over larger areas, protecting against blunt force trauma (and potentially integrating ballistic panels). Laminated systems combining impact foams (like EVA or specialized PU) with spreading layers are common. Comfort and breathability are also important factors.

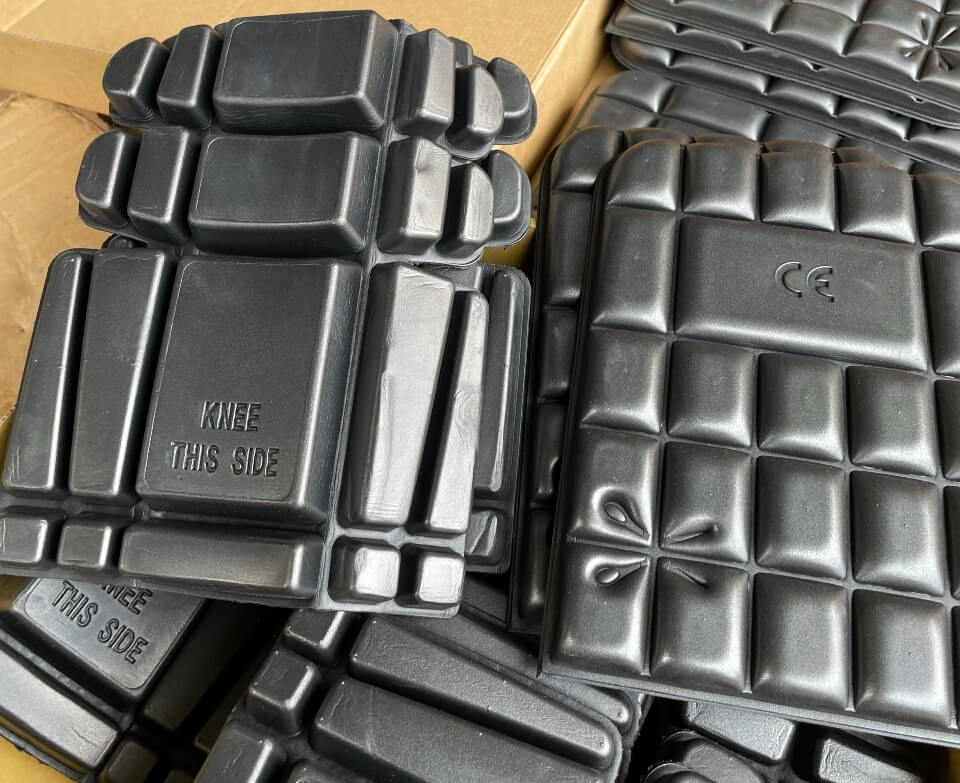

• Knee Pads: Need durability against abrasion and repeated impacts on hard surfaces. Good compression set resistance is vital. Dense, molded EVA¹⁰ foam is a very popular choice due to its toughness and cost-effectiveness. Molded PU also offers excellent cushioning and durability.

We consider factors like:

* Impact Energy:* High (helmet) vs. Moderate/Repeated (knee pad).
* Coverage Area:* Large (body armor) vs. Focused (knuckle protector).
* Flexibility:* Needs to conform (body armor) vs. Can be rigid (some helmet shells).
* Weight:* Critical for helmets, less so for stationary pads.

By analyzing these needs, we help clients select and design foam components that provide optimized protection for each specific PPE application.

What Innovations Are Shaping the Future of Impact Foam Technology?

Think current foams are the final word in safety? Relying only on existing materials means missing out on advancements. Staying aware of innovations helps create next-generation PPE with enhanced protection and comfort.

Innovations include shear-thickening fluids¹¹ integrated into foams, auxetic structures that thicken on impact, bio-based foam materials, advanced multi-layer composites, and improved modeling for predicting impact performance. These aim for lighter, thinner, and more effective protection.

The field of impact protection is constantly evolving. At FoamTech, we keep an eye on emerging technologies that could enhance safety. Some exciting developments include:

• Rate-Reactive Materials: Foams incorporating materials (like shear-thickening fluids) that remain soft and flexible during normal movement but instantly stiffen upon impact to absorb energy. This offers comfort without compromising protection.

• Auxetic Foams: These materials have a unique structure that causes them to become thicker perpendicular to the direction of impact, potentially offering better energy absorption and confinement.

• Advanced Composites: Developing new ways to combine foams with other materials (like thin, strong plastics or advanced textiles) in laminated or molded structures for synergistic effects – thinner profiles with higher protection levels.

• Bio-Based Foams: Research into sustainable foam options derived from renewable resources that can meet demanding impact performance requirements.

• Improved Simulation: Using advanced computer modeling (Finite Element Analysis - FEA) to better predict how different foam structures and material combinations will behave under various impact scenarios, speeding up design and optimization.

These innovations promise PPE that is not only safer but also potentially lighter, more comfortable, and better tailored to specific threats, aligning with the goals of developers aiming for cutting-edge products.

Conclusion

Effective PPE relies heavily on advanced impact-absorbing foams like EVA, PU, EPP, and PE. Matching the right material and manufacturing method to the specific application ensures optimal safety and performance.

EVA foam thermoforming shapes this material using heat and pressure. This process creates custom parts for helmets, pads, and footwear. It makes protective gear comfortable and effective for many uses.

I have seen many materials used for protection over the years. EVA foam stands out. Let's look at why people in the personal protection market choose it.

Why EVA Foam is a Go-To Material for Personal Protection?

Do you worry about making protective gear comfortable and safe? Choosing the right material is key. The wrong choice can make products bulky or ineffective. This hurts user acceptance and safety ratings.

EVA foam¹ is a top choice for personal protection because it offers a great mix of shock absorption, flexibility, and light weight. It is also easy to shape using heat, making custom fits possible.

When we help companies like SafeGuard Equipment, they need materials that perform. EVA foam has properties that meet tough demands. It protects people well. It also works well with manufacturing processes. This combination is hard to beat. EVA foam absorbs impacts. It bounces back after compression. It feels soft against the skin. It does not weigh much. These points are vital for products people wear for safety. Think about a helmet liner or a knee pad. It needs to absorb a hit. It also needs to feel good for a long time. EVA foam does this. It is also durable. It lasts through repeated use. This is important for sports gear or industrial pads. Manufacturers can cut it, shape it, and bond it easily. This helps make complex designs. It keeps production costs reasonable. [I remember a project where a client needed a very specific shape for a shoulder pad. EVA foam's ability to be thermoformed made this custom shape possible.

EVA Foam Properties Relevant to Thermoforming and Protection?

Are you unsure which EVA foam properties matter most? Not knowing the key features can lead to choosing the wrong foam. This affects how well it forms and how much it protects.

Key EVA foam properties for thermoforming and protection include its ability to soften with heat, its energy absorption², its flexibility, and its density. These features allow it to be molded into complex shapes and provide impact cushioning.

Understanding EVA foam properties helps us make the best products. We work with many types of foam. EVA has specific traits that make it good for thermoforming and protection. These traits work together.

Key Physical and Mechanical Properties of EVA Foam for Protective Gear

EVA foam is known for absorbing energy. When something hits it, the foam compresses. It takes the force of the impact. This protects the person wearing the gear. It is also flexible. It bends easily. This helps it fit body shapes. It feels comfortable. It is light. This means protective gear does not feel heavy. People can move freely. It resists water. This is good for sports or outdoor use. It does not break down easily from sweat or moisture. It is also durable. It can handle repeated use without losing its shape or protection level quickly. We test these things carefully.

Thermal Properties of EVA Foam: What Matters for Successful Thermoforming

Thermoforming uses heat. EVA foam softens when heated. It becomes pliable. This is the key thermal property. It has a specific temperature range where this happens. It does not melt suddenly like some plastics. It softens over a range. This makes it easier to control the forming process. It cools down fast. It keeps the new shape. This is important for production speed. We need to control the heat precisely. Too much heat can damage the foam. Too little heat means it will not form correctly. Our experience helps us find the right temperature for different EVA types.

Cell Structure and Density: How They Influence EVA Foam's Performance and Formability

EVA foam has a cell structure³. It is like tiny bubbles inside the material. These cells trap air. The cell size and how they are arranged affect the foam. Closed-cell EVA foam is common for protection. The cells are sealed. They do not let water in. They provide good cushioning. Density is how much material is in a certain space. Higher density foam is usually firmer. It offers more support. It can absorb higher impacts. Lower density foam is softer. It is lighter. It is good for comfort layers. Density also affects thermoforming. Higher density foam might need more heat or pressure. The cell structure and density influence how the foam compresses. They affect how it springs back. We choose the right density and cell structure for each product need.

The Thermoforming Process for EVA Foam

Is the EVA foam thermoforming process a mystery to you? Not knowing the steps can make quality control hard. It can lead to wasted material and bad parts.

The EVA foam thermoforming process involves heating a sheet of foam until it is soft, placing it over or into a mold, and using vacuum or pressure to shape it. The foam cools in the mold and keeps the new shape.

We have used thermoforming for over 15 years. It is a powerful way to shape foam. It allows us to create complex, curved parts. These parts fit well in protective gear. The process needs careful control. We follow specific steps to get good results every time. This process is different from injection molding or die cutting. It uses heat to make the foam bendable. Then it forms the shape.

Understanding the EVA Foam Thermoforming Process: Steps and Principles

The process starts with a flat sheet of EVA foam. We place the sheet into a frame. The frame holds it flat. We heat the foam. We use radiant heaters or hot air ovens. The heat makes the foam soft and rubbery. We move the softened foam sheet over a mold. The mold has the desired shape. We then apply vacuum or pressure. Vacuum pulls the foam down onto the mold surface. Pressure pushes the foam onto the mold. This forces the foam to take the mold's shape. The foam cools down while it is still on the mold. As it cools, it becomes stiff again. It holds the shape of the mold. Finally, we remove the shaped part from the mold.

Critical Process Parameters: Temperature, Time, and Pressure in EVA Thermoforming

Three main things control the process: temperature, time, and pressure. Temperature is how hot the foam gets. It must be hot enough to soften the foam fully. It must not be so hot that it damages the foam structure. Time is how long the foam is heated. It needs enough time to heat all the way through. Thicker foam needs more time. Pressure or vacuum is how strong the force is that shapes the foam. More detailed shapes might need more pressure. The type of EVA foam affects these settings. Different densities or formulations need different parameters. We fine-tune these settings for each project. This ensures the foam forms correctly. It makes sure the final part has the right thickness and shape.

Tooling and Mold Design for EVA Foam Thermoforming

The mold is key to the shape. Molds can be made from wood, plastic, or metal. Metal molds last longer for high volume. Mold design is important. It must have the exact shape needed for the final part. It needs features to allow vacuum or pressure to work well. Air holes are needed for vacuum forming. The mold surface affects the foam surface finish. We design molds based on the product requirements. We consider how the foam will stretch and thin during forming. This helps us make molds that produce accurate parts. Good mold design saves time and material.

Post-Thermoforming Operations: Trimming, Bonding, and Finishing EVA Parts

After forming, the part is still attached to the larger foam sheet. We need to trim away the extra material. Die cutting is often used for trimming. This cuts the shaped part cleanly. Sometimes, we need to bond multiple thermoformed parts together. We use special adhesives for this. We can also bond thermoformed foam to other materials. This includes fabric or rigid plastic shells. Finishing steps might include adding logos or surface treatments. Each step needs care. It makes sure the final component meets quality standards. These steps complete the process from a flat sheet to a finished protective part.

Applications in Personal Protection

Are you looking for ways to use shaped foam in protective gear⁴? Not knowing where thermoformed EVA fits can limit product design. It might mean missing out on better comfort and protection.

Thermoformed EVA foam is widely used in personal protection. It creates shaped padding for helmets, body armor, sports pads, and footwear. It adds comfort and critical impact protection in specific areas.

We see thermoformed EVA foam in many products. It is a core material for companies making protective equipment. Its ability to be shaped makes it perfect for fitting complex body curves or helmet interiors.

Thermoformed EVA Foam in Head Protection: Helmet Liners and Pads

Helmets need a liner that fits the head shape well. It also needs to absorb impact energy. Thermoformed EVA foam is often used for helmet liners and fit pads. It can be molded to match the inside shape of a helmet shell. It can also be shaped to fit specific head contours. This provides a snug and comfortable fit. A good fit is important for safety. It keeps the helmet in place. The foam absorbs shock during an impact. Different densities can be used in layers. This gives different levels of protection. We make custom liners for various helmet types. This includes sports helmets, industrial hard hats, and military helmets.

Body Protection: Using Thermoformed EVA in Sports Gear and Body Armor

Body protection needs pads that cover specific areas. These areas include shoulders, elbows, knees, and chests. Thermoformed EVA foam creates shaped pads for these areas. It can be molded with curves to fit joints. It can have channels or vents molded in for airflow. This adds comfort during activity. In sports gear, it is used in pads for football, hockey, and martial arts. In body armor, it provides blunt trauma protection layers. It works with hard plates or shells. The shaped foam spreads impact force. It reduces the energy reaching the body. We produce custom pads for many types of body protection.

Protective Footwear Components: Insoles, Midsoles, and Ankle Protection

Footwear needs cushioning and support. It also needs protection in some cases. Thermoformed EVA foam is used for insoles and midsoles. It provides shock absorption for the foot. It can be molded with arch support or heel cups. This improves comfort and stability. It is also used for ankle protection in boots or skates. It can be shaped to fit around the ankle bone. This provides padding and support. The ability to mold complex shapes helps create ergonomic footwear components. These components improve performance and prevent injury.

Other Personal Protection Applications (e.g., Joint Braces, Industrial Pads)

Thermoformed EVA foam is also used in other areas. It is found in joint braces for knees, elbows, or wrists. It provides padding and support around the joint. It can be shaped to fit the anatomy. In industrial settings, it is used for padding in workwear or equipment. Examples include kneeling pads or protective inserts for vests. It provides cushioning against hard surfaces or impacts. Its durability and ability to be shaped make it useful in many niche protection products. We have helped clients develop unique protective pads for various industrial needs.

Design and Manufacturing Considerations

Are you thinking about designing protective gear with thermoformed EVA? Not planning for design and manufacturing needs can cause problems. It can lead to parts that do not fit or do not meet safety rules.

Designing with thermoformed EVA foam requires considering the desired shape, thickness variation during forming, and how it will integrate with other materials. Manufacturing needs include precise temperature control and quality checks to ensure parts meet performance standards.

Making effective protective gear with thermoformed EVA needs careful planning. We help clients like SafeGuard Equipment go from idea to final product. This involves thinking about design for manufacturing and ensuring high quality.

Achieving Desired Fit and Comfort Through Thermoformed EVA Design

Fit and comfort are very important for personal protection. Gear that is uncomfortable might not be worn correctly or at all. Thermoformed EVA foam can be designed to fit body contours closely. The mold shape dictates the final form. We can design molds to create specific curves, channels, or features. These features help the foam fit better. They can also allow airflow for comfort. Foam density and thickness also play a role. Softer foam feels more comfortable against the skin. Thicker foam provides more cushioning. The design must balance protection needs with comfort needs. We use our experience to help clients design parts that feel good and protect well.

Quality Control and Testing Standards for Thermoformed EVA PPE Components

Quality is critical for protective gear. The parts must perform as expected. We have quality control steps for thermoformed EVA parts. We check the shape and dimensions against the design. We look for defects like thinning, bubbles, or uneven surfaces. We also test the foam's properties. This includes testing energy absorption and compression set. These tests make sure the foam still performs after forming. Personal protective equipment often has specific testing standards. These standards ensure the product protects the user. We make sure our thermoformed components help the final product meet these standards. Our commitment to quality ensures the parts we make are reliable.

Conclusion

EVA foam thermoforming is a great method for personal protection. It shapes foam for comfort and impact safety. This process helps make effective protective gear.

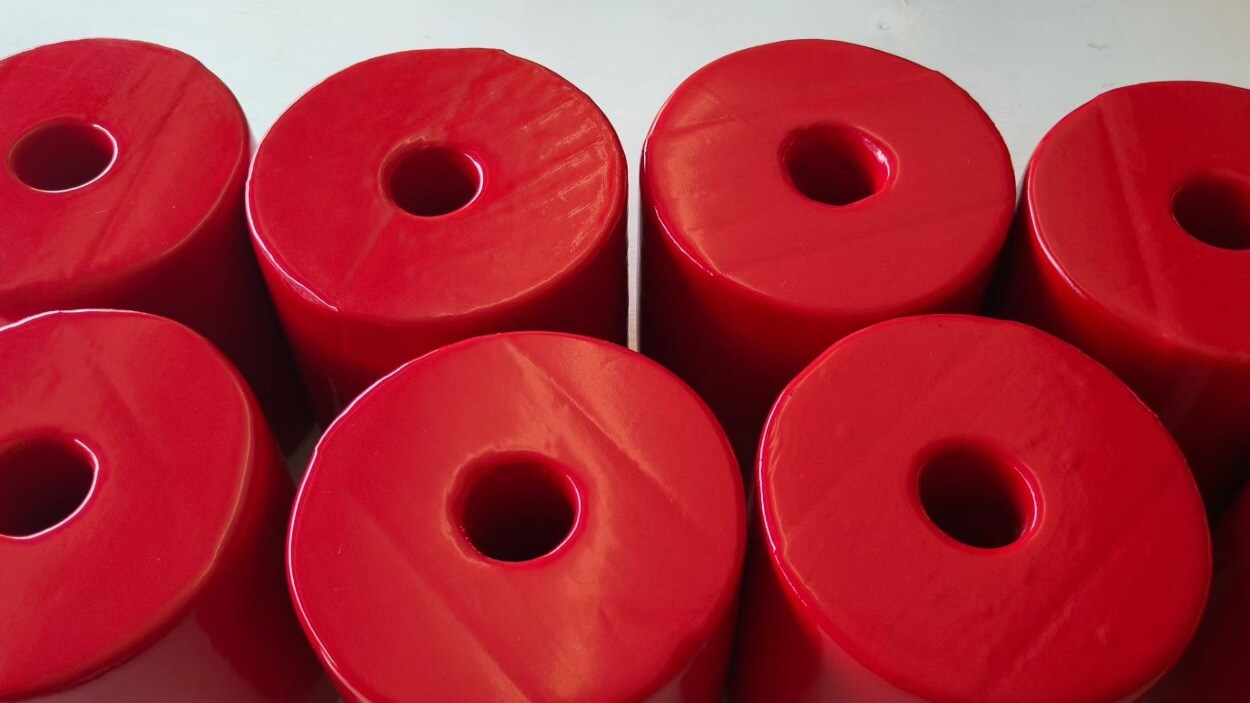

The best foams for vinyl dip coating are typically closed-cell foam types like NBR/PVC blends, which offer excellent durability and heat resistance. Certain Polyurethane (PU) foam, Polyethylene (XLPE) foam, and EVA foam can also work, depending on their density, formulation, and the specific coating process parameters used.

Getting that smooth, durable vinyl coating relies heavily on the foam underneath. Before diving into specific foam types, let's quickly understand what vinyl dip coating involves and what it demands from the foam. This foundation helps make sense of why some foams work better than others.

What Does Vinyl Dip Coating Need from Foam?

Dipping foam and getting poor results like bubbles or weak bonds? This happens when the foam isn't compatible. Understand the process needs to avoid costly coating failures later.

Vinyl dip coating needs foam that resists the process heat without degrading, has good surface properties (often closed-cell) for adhesion, and won't outgas excessively during coating. Material stability and appropriate surface texture are key for a smooth, well-bonded vinyl layer.

Vinyl dip coating usually uses a liquid plastic called plastisol¹. The foam part is often preheated, then dipped into this liquid vinyl, and finally cured in an oven. This heat is crucial. The foam must withstand these temperatures (often 300-400°F or 150-200°C) without melting, shrinking excessively, or collapsing. Closed-cell foams generally perform better because they don't absorb the liquid plastisol like open-cell foams might. Absorption can lead to heavy, uneven coatings.

The foam's surface needs to allow the vinyl to "wet out" and form a strong mechanical bond as it cures. If the foam releases gases (outgassing) when heated, it can cause bubbles or pinholes in the finished vinyl layer. So, key requirements are:

• Thermal Stability: Resists process heat.
• Cell Structure: Preferably closed-cell for less absorption.
• Surface Quality: Allows good vinyl adhesion.
• Low Outgassing: Prevents bubbles during cure.

Can You Use Polyurethane Foam for Vinyl Dip Coating?

Considered PU foam but worried it won't take vinyl coating well? Some PUs fail, leading to weak bonds. Knowing which types work prevents wasted effort and ensures durability.

Yes, certain Polyurethane (PU) foams can be vinyl dip coated, especially flexible molded PU and some higher-density open-cell types. Success depends on the specific PU formulation's heat resistance and surface characteristics. Careful process control is often needed for consistent results.

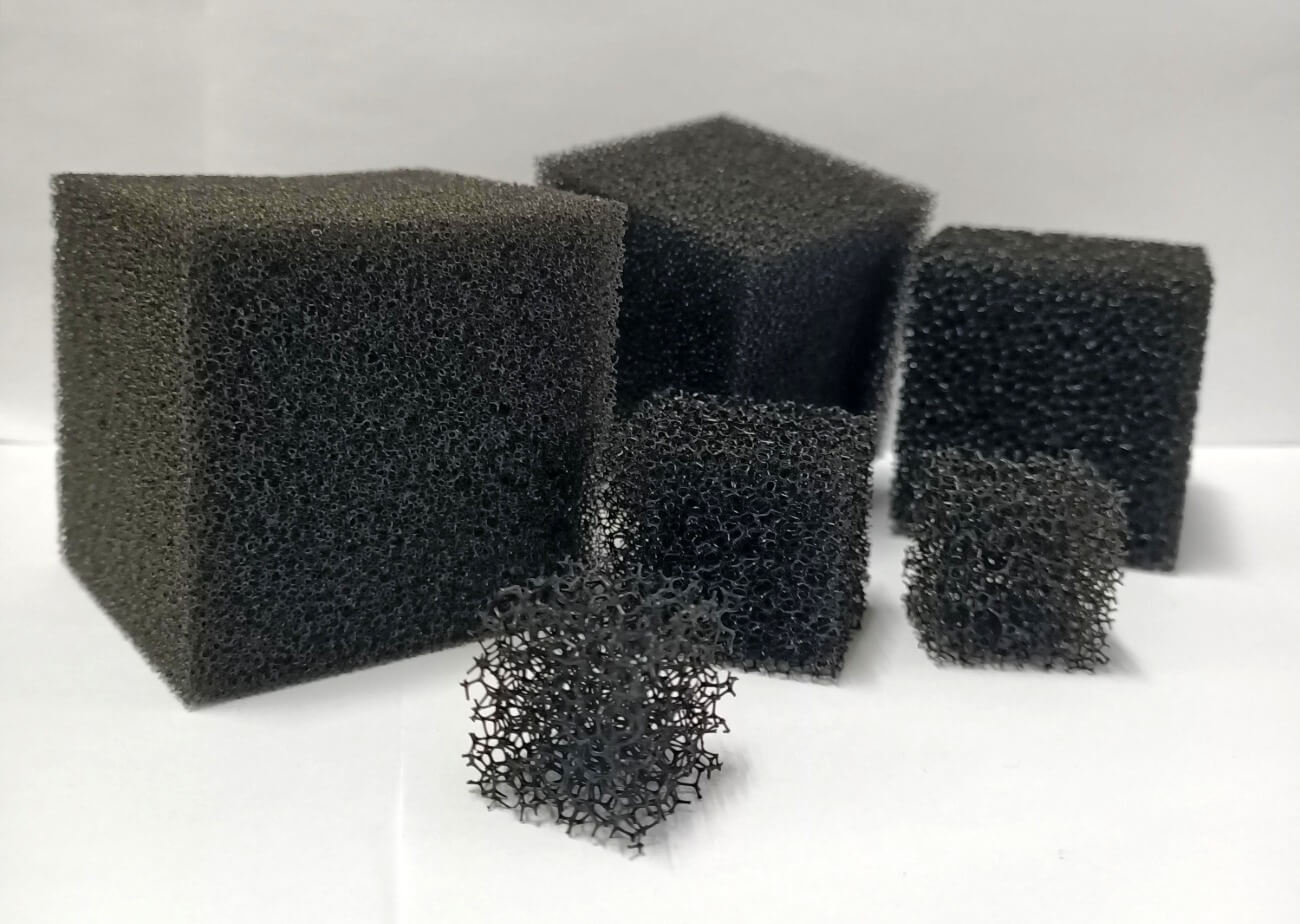

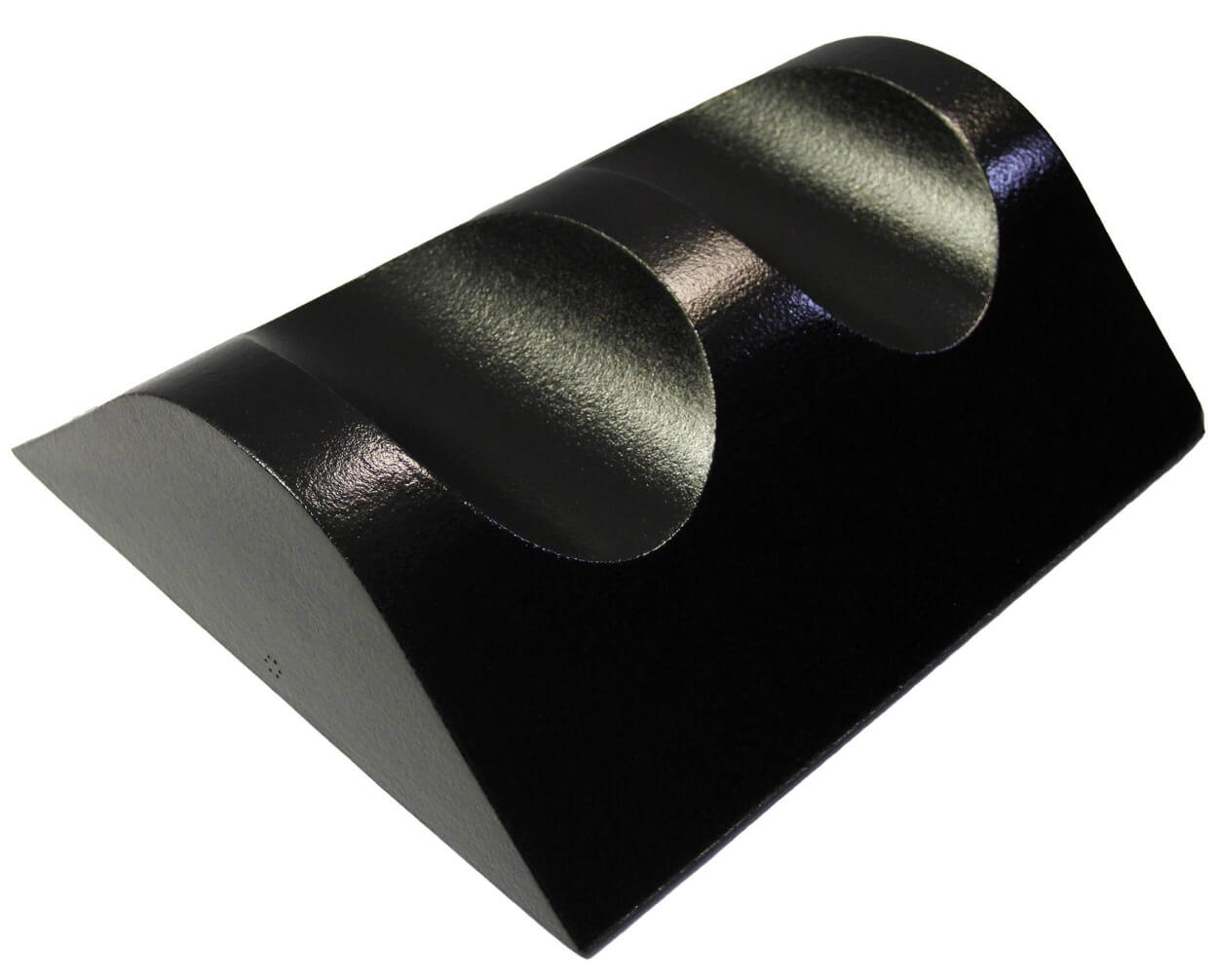

Polyurethane foam comes in many forms. Standard open-cell PU (like upholstery foam) is tricky for vinyl dipping. Its open structure can absorb too much plastisol, making the part heavy and potentially uneven. It can also struggle with the heat. However, flexible molded PU foams, often denser and with a skin or more closed surface structure, can be suitable. These are engineered for specific shapes and properties, sometimes including better heat resistance.

Success often depends on the density and chemical makeup². Lower density open-cell types might require sealers before dipping, adding cost and complexity. With any PU, controlling the preheat temperature and curing cycle is vital. This helps avoid scorching or degrading the foam, especially at the surface where the bond forms. We've found careful testing is key when considering PU foam for vinyl coating projects.

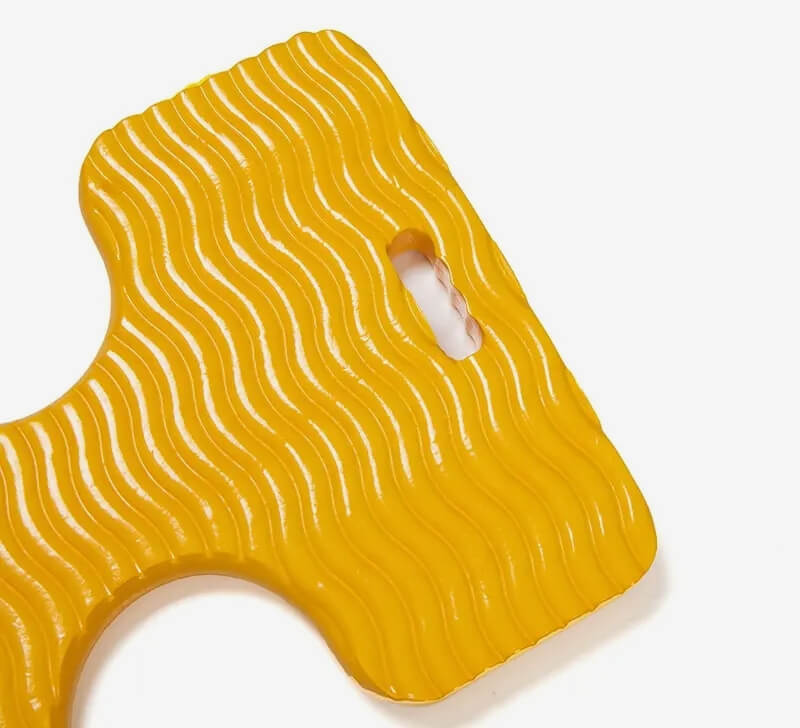

Why is NBR/PVC Foam Often Ideal for Vinyl Dip Coating?

Want the most reliable foam for vinyl dipping? Choosing less suitable foams risks poor adhesion and short product life. NBR/PVC blends offer consistent, premium results for demanding applications.

NBR/PVC (Nitrile Butadiene Rubber/Polyvinyl Chloride) foam blends are often ideal because they are closed-cell, inherently resistant to oils and chemicals, durable, and handle the heat of vinyl dip coating processes³ very well. Their surface promotes excellent vinyl adhesion for long-lasting results.

NBR/PVC foam⁴ is a blend that combines the flexibility and oil resistance of Nitrile rubber with the durability and processing ease of PVC. This combination results in a closed-cell foam⁵ that's naturally tough and resistant to many chemicals and oils. Critically for vinyl dipping, it generally has excellent thermal stability. It easily handles the typical curing temperatures without significant degradation. Its closed-cell nature prevents plastisol absorption.

This ensures a consistent coating thickness and weight. The surface of NBR/PVC foam typically provides a great base for the vinyl plastisol to bond strongly during curing. This leads to a durable, peel-resistant finish. Because of these properties, we often recommend NBR/PVC blends for applications needing high durability and a reliable coating. Examples include industrial grips, handles, protective padding, and flotation devices. It’s a go-to choice for premium results in vinyl coating.

Which Polyethylene (XLPE) Foams Work for Vinyl Dip Coating?

Interested in using PE foam but unsure if it accepts vinyl coating? Some PE foams melt or shrink badly. Selecting the right type, like XLPE, is key for successful coating.

Cross-linked Polyethylene (XLPE) foam often works well for vinyl dip coating due to its closed-cell structure and improved heat resistance compared to non-cross-linked PE. Success depends on the specific density and formulation; higher densities generally perform better under heat.

Standard Polyethylene (PE) foam often has a lower melting point. It might not withstand vinyl dip coating temperatures well. However, cross-linked Polyethylene (XLPE) foam is different. The cross-linking process creates stronger bonds within the foam structure. This improves its thermal stability⁶, strength, and rigidity. XLPE is typically closed-cell, which is good for preventing plastisol absorption. While generally more heat resistant than standard PE, some lower-density XLPE grades can still experience shrinkage or surface distortion at curing temperatures. Higher density XLPE foams tend to perform better.

Careful control over preheating and curing times/temperatures is essential when using XLPE. This minimizes any potential heat-related issues. We find XLPE can be a cost-effective option for certain applications where its properties align with the moderate heat exposure of some vinyl coating processes. Testing specific grades is always recommended first.

Is EVA Foam Compatible with Vinyl Dip Coating?

Like EVA's properties but worried vinyl won't stick well? Poor adhesion ruins the product's feel and function. Understanding EVA's compatibility ensures a good bond and finish.

EVA (Ethylene Vinyl Acetate) foam can be compatible with vinyl dip coating, but success often requires surface preparation or specific coating formulations. Its closed-cell structure is good, but achieving strong adhesion might need careful process control or primers due to EVA's surface characteristics.

EVA foam⁷ is popular for its flexibility, cushioning, and toughness. It's a closed-cell material, which prevents liquid absorption – a plus for dip coating. However, EVA's surface energy can sometimes make achieving a super strong, permanent bond with standard vinyl plastisols challenging.

This can be harder compared to NBR/PVC. The vinyl might not "wet out" the surface as effectively. This could lead to weaker adhesion over time, especially under stress or flexing. To overcome this, sometimes surface treatments or primers are used on the EVA before dipping to promote better bonding.

Alternatively, specialized plastisol formulations designed for better adhesion to polyolefins like EVA might be needed. Careful control over preheat and cure temperatures is also important, as EVA can soften or distort if overheated. While it requires more attention to process details than NBR/PVC, EVA can certainly be vinyl coated successfully for many applications.

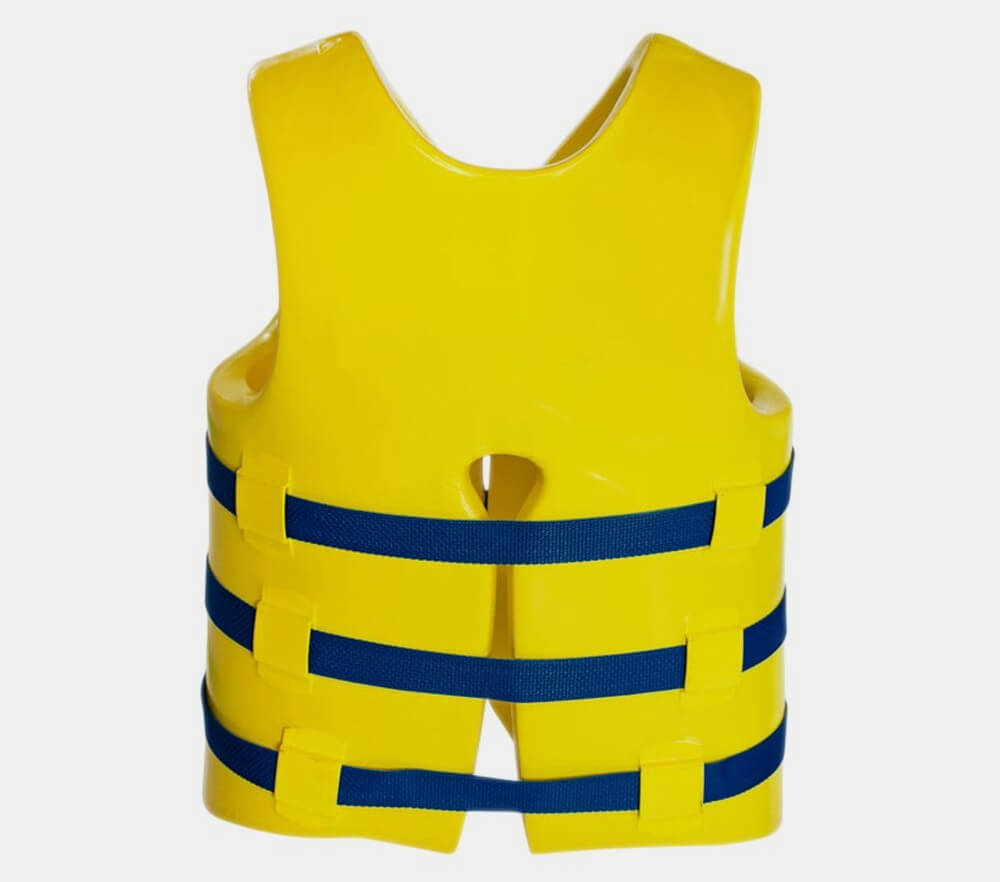

Where is Vinyl Dip Coated Foam Commonly Used?

Unsure if vinyl coated foam fits your product needs? Guessing leads to missed opportunities or wrong material choices. Seeing examples clarifies where this combination excels.

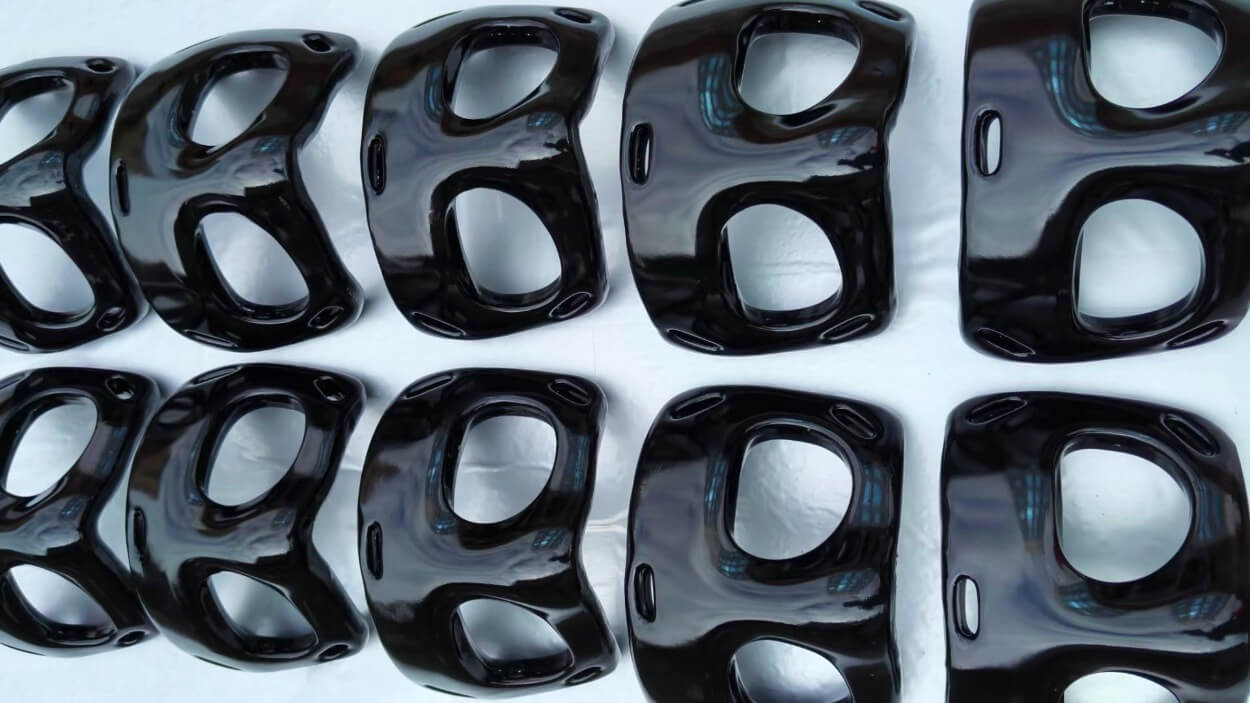

Vinyl dip coated foam is used widely in medical devices (grips, positioning aids), industrial safety gear (handles, bumpers), entertainment props (realistic feel, durability), and sports equipment (protective padding, grips) due to its durability, cleanability, cushioning, and customizable finish.

The combination of foam's cushioning and vinyl's durable, sealed surface makes it useful in many areas. Here are some examples:

• Medical: Handles for instruments, patient positioning aids, wheelchair pads. The vinyl coating provides a cleanable, non-porous surface meeting healthcare standards. The foam offers comfort. Often uses PU or NBR/PVC.

• Industrial: Grips for tools and levers, protective bumpers, anti-fatigue mats. Durability, oil resistance, and grip enhancement are key benefits. NBR/PVC is common here.

• Entertainment/Props: Creating realistic-looking props (like weapons or textures) that are safe and durable. The vinyl coating allows for vibrant colors and specific finishes on lightweight foam cores (like EVA or specific PUs).

• Athletic/Sports: Protective padding (helmet liners, body pads), exercise equipment grips, pool floats. Needs impact absorption (from the foam) plus a durable, sweat-resistant, easily cleaned surface (from the vinyl). NBR/PVC, XLPE, and specific molded foams are used.

How Do You Fix Common Vinyl Coating Issues on Foam?

Facing problems like bubbles, drips, or poor adhesion in your coating? These defects ruin parts and waste resources. Knowing common fixes helps achieve consistent quality results.

Fix common issues by controlling process parameters: adjust preheat/cure temps to stop bubbles/degradation, modify dip/withdrawal speed for drips/thickness, use primers or adjust plastisol for adhesion problems, and ensure foam is clean and dry before coating.

Even with the right foam, coating issues can arise. Here are common fixes we use:

• Bubbles/Pinholes: Caused by foam outgassing⁸ or moisture. Fix: Dry foam thoroughly; adjust preheat temperature/time; try slower heating.

• Drips/Uneven Coating: Due to plastisol viscosity⁹ or withdrawal speed. Fix: Adjust withdrawal speed; check/adjust plastisol viscosity; ensure proper part orientation during withdrawal.

• Thin Spots: Caused by poor preheating or plastisol flow. Fix: Ensure uniform preheating; check plastisol level/viscosity; consider part rotation during dipping or curing if needed.

• Poor Adhesion/Peeling: Foam incompatibility, contamination, or bad cure. Fix: Clean foam surface carefully; consider primers (especially for EVA/PE); verify cure temperature and time are sufficient for a full bond.

• Foam Distortion/Melting: Exceeding foam's heat limit. Fix: Reduce preheat or cure temperature; shorten heating time; select a more heat-resistant foam grade if necessary. Careful process control is key.

Conclusion

Selecting the right foam (like NBR/PVC, XLPE, PU, or prepared EVA) matched to vinyl coating needs ensures durable, high-quality results. Always consider heat resistance, cell structure, and adhesion properties.

Selecting the best foam fabrication involves matching your product's needs (like material, shape, required precision, and production volume) with the capabilities of different methods (like die cutting, CNC cutting, molding, or lamination). Always prioritize your most important requirements and consult experts for the ideal fit.

Choosing the right way to make your foam part might seem complex at first. But if you understand your needs clearly, the choice becomes much simpler. Let's start by breaking down how to figure out exactly what your product requires before you choose a fabrication method.

How Do You Define Your Product's Key Requirements First?

Unsure exactly what features your foam part needs? Guessing can lead to poor performance or unexpectedly high costs down the line. Clearly defining your requirements first ensures you select the most suitable fabrication process from the start.

Define key requirements by looking at material compatibility (like EVA, PE, PU, EPP), how precise the dimensions need to be (tolerances), how complex the part's shape is, the desired look (surface finish), and exactly how the part must perform (like absorbing shock or creating a seal).

To pick the right foam fabrication method, you first need a very clear picture of what your part must do and what it should be like. Think about these points:

• Material Compatibility: What type of foam do you plan to use? EVA foam¹, Polyethylene (PE) foam, Polyurethane (PU) foam, and Expanded Polypropylene (EPP) foam all behave differently. Some methods work better with certain materials. For example, molding is great for EPP, while die cutting works well with many closed-cell foams like PE and EVA. We can help guide you based on our experience with these materials.

• Dimensional Accuracy: How exact do the measurements need to be? If your part needs very tight tolerances, methods like CNC cutting² or precision molding might be necessary. Less critical dimensions might allow for methods like die cutting.

• Part Complexity: Is the shape simple, like a flat gasket, or complex, like a custom helmet liner? Simple shapes are often suited for die cutting. Intricate, 3D shapes usually require CNC cutting or molding (like compression or injection molding).

• Surface Finish³: Does the part need to look good or feel a certain way? Surface finish is important for consumer products like PPE, where needs comfort and a professional look. For industrial parts hidden inside machinery, like those procures, aesthetics might be less critical than durability. Molding often gives a smoother, more finished surface.

• Functional Needs: What is the main job of the foam? Is it for shock absorption in protective gear, sealing against dust or water, providing insulation, or something else? This function heavily influences material choice and sometimes the fabrication method needed to achieve the desired performance.

Understanding these requirements is the foundation for making a smart choice.

What Are the Common Foam Fabrication Methods Available?

Confused by terms like die cutting, CNC routing, or compression molding? Not knowing the available options can limit your design possibilities. Understanding each common method helps you see what's possible for your foam product.

Common methods include die cutting (good for high volume, simple shapes), CNC cutting (very precise, good for complex shapes or prototypes), molding (compression or injection for 3D shapes), lamination (joining layers), and skiving/splitting (adjusting thickness). Each method has its own advantages and disadvantages.

At FoamTech, we use a variety of techniques based on our 15+ years of experience. Here's a look at some common methods:

Die Cutting

• Pros: Very fast for high volumes, low cost per part once the tool (die) is made, good for simple shapes.

• Cons: Requires upfront tooling cost, not suitable for highly complex shapes or very thick materials, can have limitations on tolerances.

• Best Uses: Gaskets, simple pads, packaging inserts, high-volume flat parts⁴. This is often great for industrial clients needing large quantities of straightforward components.

CNC Cutting (Contour, Waterjet, Laser)

• Pros: No tooling cost needed, excellent precision, handles complex shapes and intricate details very well, flexible for design changes.

• Cons: Slower production speed compared to die cutting, potentially higher cost per part, especially for large volumes.

• Best Uses: Prototyping, low-to-medium volume production, parts with very tight tolerances, complex 2D shapes⁵. Ideal for projects like PPE development where prototypes and precision are key.

Molding (Compression, Thermoforming, Injection)

• Pros: Creates complex 3D shapes, offers good surface finish, highly repeatable for large volumes, can incorporate details like logos or textures.

• Cons: High initial tooling (mold) cost, longer setup time for tooling, less flexible for design changes once the mold is made.

• Best Uses: Protective gear components (helmets, padding), ergonomic parts, cases, parts needing a specific 3D form. Compression molding and thermoforming are common for EVA, PE, and PU foams. Injection molding is used for some foam types too.

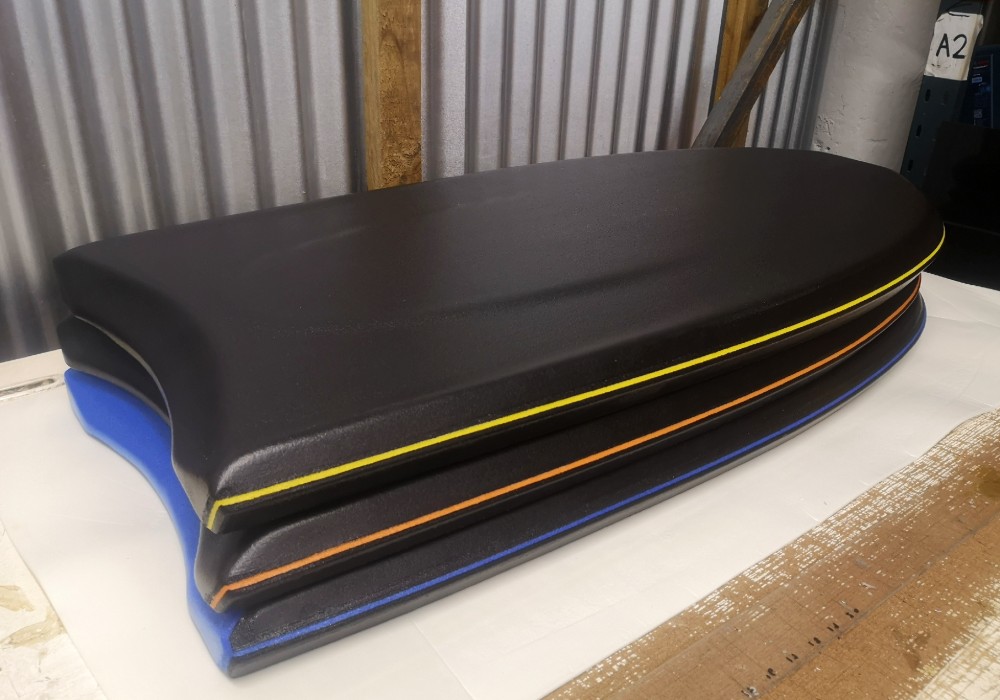

Lamination and Bonding

• Pros: Allows combining different materials (e.g., foam and fabric, different foam densities), creates multi-functional parts.

• Cons: Adds an extra step to the process, requires compatible adhesives and techniques.

• Best Uses: Cushioned carrying cases, layered padding systems, parts needing specific surface properties (like adding durable fabric to a foam core).

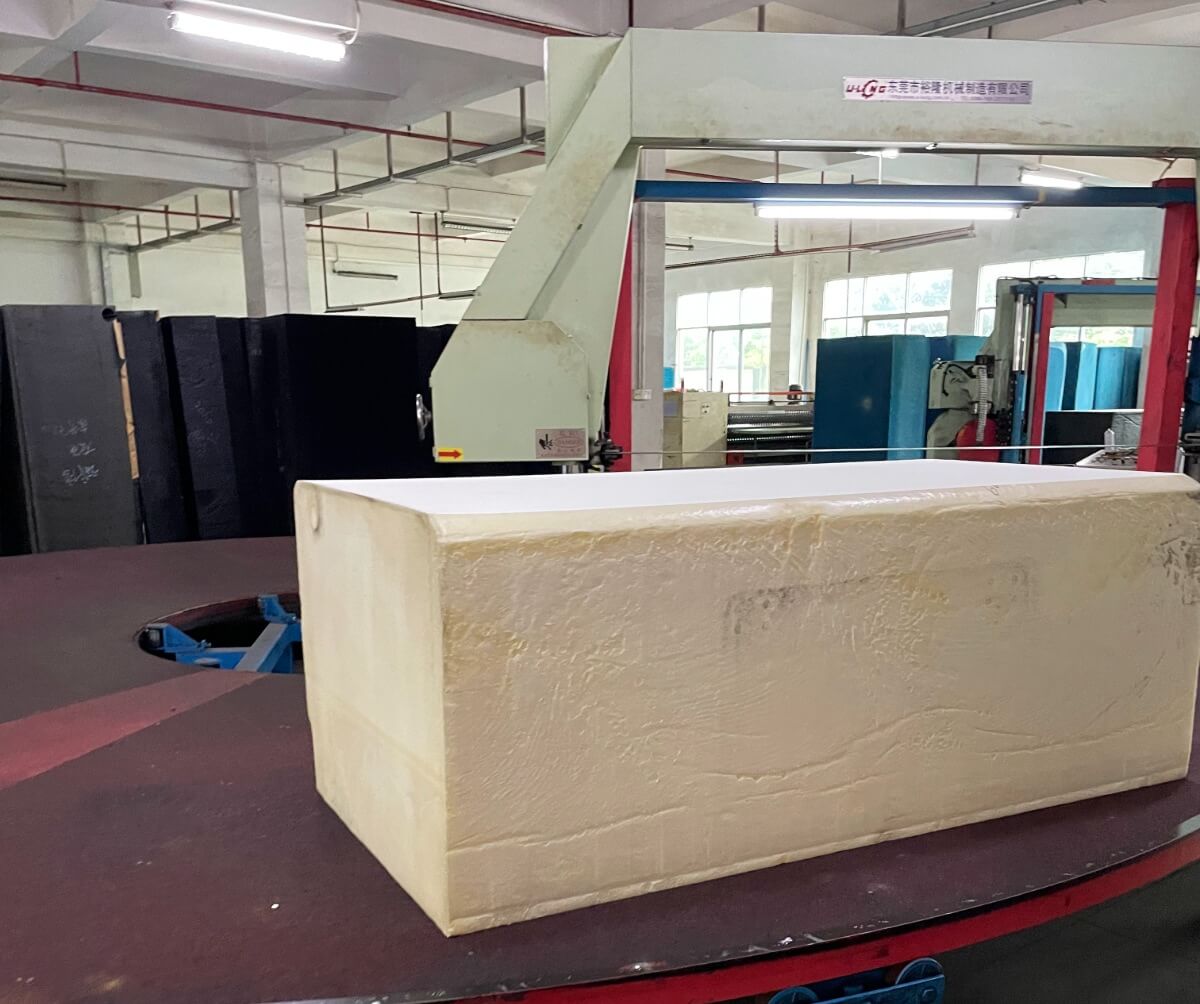

Skiving and Splitting

• Pros: Achieves precise foam thickness, useful for creating thin sheets from thicker blocks.

• Cons: Primarily focused on thickness adjustment, not shape creation.

• Best Uses: Preparing foam materials to a specific thickness before other fabrication steps, creating thin foam sheets or rolls.

Understanding these options helps you narrow down the possibilities based on what each method does best.

What Key Factors Influence Which Foam Fabrication Method You Choose?

Feeling overwhelmed by the different fabrication choices? Picking a method based on just one factor, like cost alone, can lead to problems later on. Considering volume, cost, waste, time, and future growth ensures you make the best long-term decision.

Key factors guiding your choice are production volume (prototype vs. low vs. high volume), cost considerations (tooling vs. part price), material efficiency (waste reduction), required lead time for production, and the potential need for future scalability.

Choosing the right method involves balancing several practical considerations. Here are the main factors we help our clients think through:

• Production Volume: How many parts do you need now, and how many might you need later?

  • Prototyping/Low Volume (1-500 pieces): CNC cutting is often ideal because there's no tooling cost and it's flexible.

  • Medium Volume (500-5000 pieces): The choice depends on complexity. Might be CNC, die cutting⁶ (if simple), or even molding if the 3D shape is essential.

  • High Volume (5000+ pieces): Die cutting (for simpler shapes) or molding (for complex 3D shapes) become much more cost-effective per part, justifying the tooling investment. This is crucial for industrial buyers.

• Cost Considerations: What's your budget focus?

  • Tooling Cost: Molding typically has the highest tooling cost, followed by die cutting. CNC cutting has little to no tooling cost.

  • Per-Part Cost: At high volumes, molding and die cutting offer the lowest per-part cost. CNC cutting generally has a higher per-part cost. We help you look at the total cost over the project life.

• Material Waste and Efficiency: How much material will be wasted? Methods like CNC cutting allow for efficient nesting of parts on a sheet to minimize waste. Die cutting efficiency depends on the part shape and layout. Molding can be very efficient as it uses a specific amount of material per part.

• Lead Time Requirements: How quickly do you need the parts? CNC cutting can be very fast for initial prototypes or small runs. Die cutting is fast once the tool is made. Molding requires time to create the mold, which can take several weeks, but production is fast afterward.

• Scalability: Do you anticipate needing significantly more parts in the future? It's good to consider if the method chosen for prototypes or initial runs can scale up, or if you'll need to transition to a different method (like from CNC prototyping to molding for mass production).

Thinking about these factors helps align the fabrication method with your business goals and project realities.

How Do You Match Specific Fabrication Techniques to Your Product's Needs?

Still feeling unsure which fabrication method is the right match for your specific product? Applying general knowledge can be tough. Let's make it clearer by directly connecting specific product needs to the best-suited fabrication techniques.

Match needs to methods directly: If you need high precision or complex shapes, lean towards CNC cutting or molding. For high volumes of simple shapes, consider die cutting. If your part requires multiple layers or materials, look at lamination. For cost-effective prototypes, CNC cutting is often best.

Let’s connect the dots with some practical examples, keeping needs in mind:

• Need: High Precision & Complex Shapes

  • Example: An intricate liner for a high-performance sports helmet, or custom foam inserts for delicate medical equipment packaging.

  • Best Methods: CNC cutting offers excellent precision without tooling investment, perfect for complex curves and cutouts found in protective equipment . Molding (Compression/Injection) is ideal for creating repeatable, complex 3D shapes essential for ergonomic fit or specific protective structures. Materials like shaped EVA or PU foam work well here.

• Need: High Volume & Simple Shapes

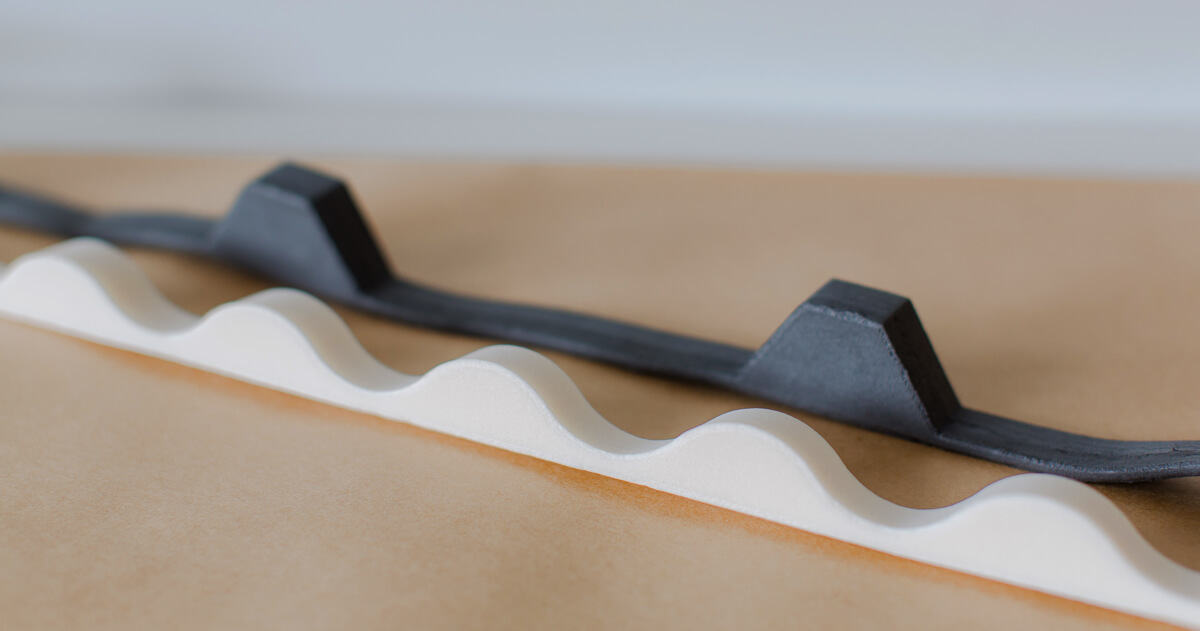

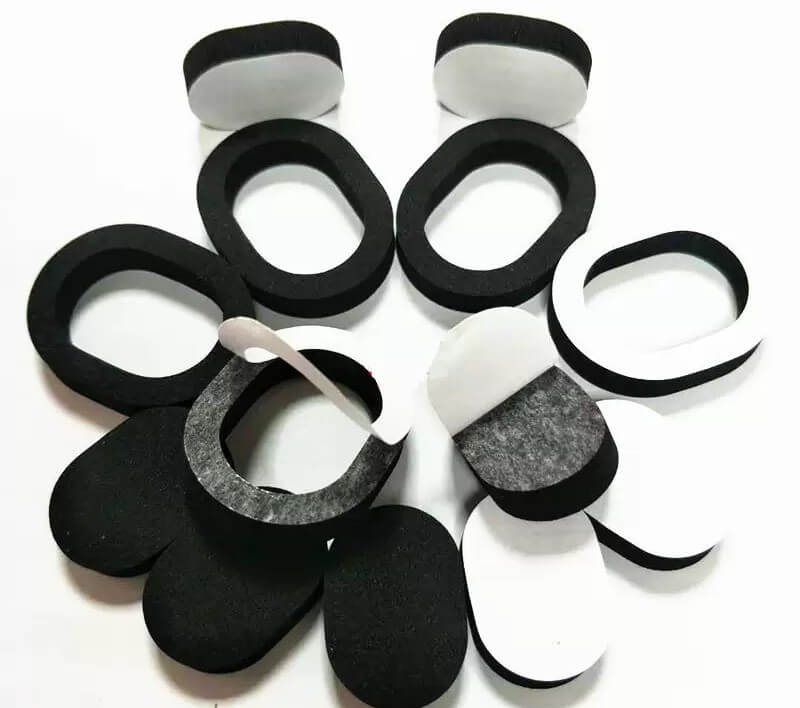

  • Example: Thousands of identical foam gaskets for industrial machinery seals, or basic rectangular pads for packaging dunnage.

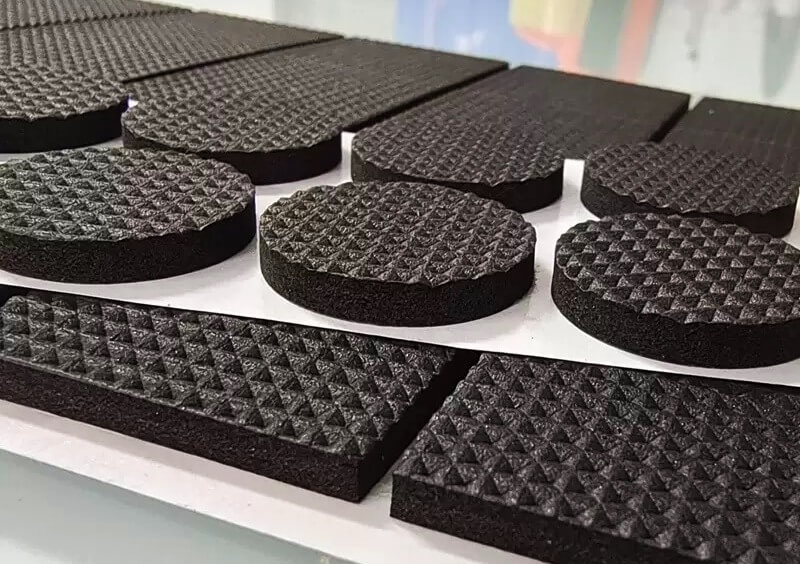

  • Best Method: Die cutting is the champion here. Once the die is made, production is incredibly fast and cost-effective per piece, meeting the bulk procurement needs of clients. PE foam or EPP are common choices.

• Need: Multi-Layer or Composite Parts

  • Example: A carrying case that needs a soft foam interior laminated to a durable fabric exterior, or a shock-absorbing pad made of layers with different densities.

  • Best Method: Lamination⁷ is the key process. We can bond various foams (EVA, PE, PU) to each other or to other materials like fabrics, leather, or plastic sheets to create composite structures with combined properties.

• Need: Cost-Effective Prototyping

  • Example: Testing several design variations for a new piece of protective padding before committing to mass production tooling.

  • Best Method: CNC cutting shines for prototyping. It allows quick creation of parts directly from CAD files with no tooling costs, enabling fast design iterations – vital for innovation in fields like PPE.

• Need: Specific Material Constraints

  • Example: Working with a rigid closed-cell foam that cuts cleanly versus a soft open-cell foam prone to tearing, or needing to shape EPP effectively.

  • Best Methods: Material behavior matters. Closed-cell foams (PE, EVA) generally die-cut and CNC-cut well. Molding is often preferred for EPP. Our deep knowledge of materials helps us recommend the best method – for instance, compression molding works wonders for giving EVA foam specific shapes and textures.

Matching the technique to the specific need ensures the final part performs as expected and is produced efficiently.

How Do You Make the Final Decision by Balancing Trade-offs?

Are you facing conflicting priorities, like needing high quality but having a tight budget, or needing parts fast but requiring complex tooling? Indecision at this stage can delay your project. Making the final choice often involves carefully weighing these factors and seeking expert input.

Make the final decision by clearly prioritizing your most critical needs (is it cost, quality, or speed?). Use prototyping to confirm your choice and test performance. Don't hesitate to consult with fabrication experts like us at FoamTech for experienced guidance on balancing these important trade-offs.

Making the final call often comes down to balancing competing needs. There's rarely one "perfect" method that excels in every single area (cost, speed, quality, precision, etc.). Here’s how we approach it:

• Prioritizing Requirements: Go back to the requirements you defined first. What is absolutely essential? What is nice to have? Rank them.

  • Is hitting a specific low cost-per-part⁸ the top priority, even if it means simpler shapes (maybe for industrial parts)?

  • Is achieving the highest level of comfort and a premium finish paramount, even if tooling costs are higher (perhaps for new PPE line)?

  • Is getting the product to market extremely quickly the main driver?

  Knowing your non-negotiables helps resolve conflicts.

• The Role of Prototyping and Testing⁹: Never underestimate the value of a prototype. Before committing to expensive tooling (like for molding) or large production runs, creating a prototype (often via CNC cutting) is invaluable. It allows you to:

  • Verify the fit, form, and function of the part.

  • Confirm if the chosen material and method deliver the required performance (e.g., shock absorption, flexibility).

  • Get user feedback if applicable.

  • Ensure the chosen method can achieve the necessary tolerances and surface finish.

  We strongly recommend prototyping, especially for parts with critical functions or complex designs.



• Consulting with Fabrication Experts (Like FoamTech!): This is where we come in. Making these decisions involves nuances learned through experience. With our background across diverse markets (sports, packaging, military, industrial, medical, personal protection) and our hands-on expertise with all major fabrication techniques (foam lamination, die cutting, compression molding/thermoforming, foam injection molding, CNC cutting, cut and sew) and materials (EVA, PE, PU, EPP, fabrics, etc.), we can provide tailored advice. We understand the trade-offs involved and can help you navigate them to find the solution that best balances your specific needs for cost, quality, performance, and speed.

By prioritizing, prototyping, and partnering with experienced fabricators, you can confidently select the best method for your project.

Conclusion

Choosing the right foam fabrication method means understanding your needs, knowing the options, and balancing trade-offs. Define requirements, explore methods, and consult experts like FoamTech for project success.
